Product Description

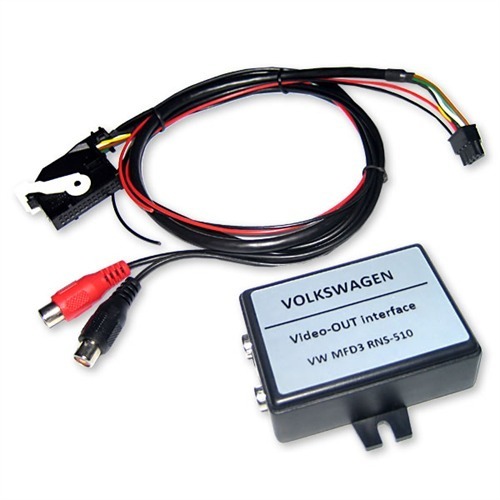

- The interface allows the connection of an additional monitor (incl. video stereo audio out) on a VW MFD3 / RNS510 system (version B) without an installed original TV tuner or multimedia interface.
This means that with the help of the adapter you can connect additional monitors (eg additional headrest monitors) to the RNS510.
- The installation is handled quickly and easy with the Plug and Play system.
- After connecting there will be provided both, the video display and the sound, so that it is possible to listen simultaneously to the radio in front and to hear the sound of a DVD movie through headphones in the back and watch the image on the headrest monitors.
Technical Data
| Interface |
| Hardwareversion / |
Hardware Version: |
V1.0.0 |
| Spannungsversorgung / |
Power Supply: |
12V DC |
| Spannungs-Arbeitsbereich / |
Voltage Operating Range: |
10,5 - 14,8 V |
| Ruhestrom / |
Quiescent current: |
0 mA |
| Leistungsaufnahme / |
Power consumption: |
1,1 W |
| Temperaturbereich / |
Temperature: |
-30°C - +80°C |
| Gewicht / |
Weight: |
40 g |
| Abmessungen BxHxT / |
Dimensions WxHxD: |
80 x 25 x 48 mm |
|
This unit is only for automotive use and has tere fore a lifetime of max. 10 years.
Scope of Delivery
- 1 x Interface
- 1 x Operating manual
