Product Description

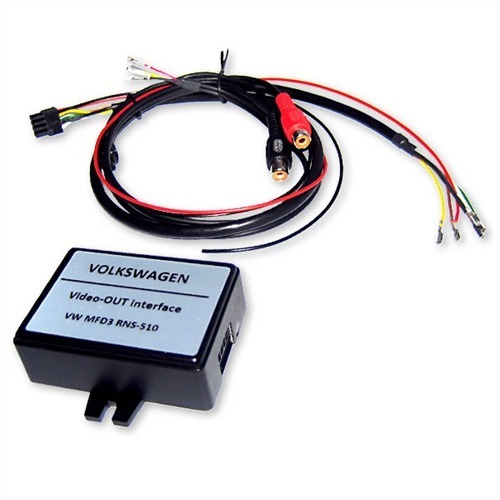

- The interface allows the connection of an additional monitor (incl. video stereo audio out) on a VW MFD3 / RNS510 system (version B) without an installed original TV tuner or multimedia interface.
Technical Data
| Interface |
| Hardwareversion / |
Hardware Version: |
V1.0.0 |
| Spannungsversorgung / |
Power Supply: |
12V DC |
| Spannungs-Arbeitsbereich / |
Voltage Operating Range: |
10,5 - 14,8 V |
| Ruhestrom / |
Quiescent current: |
0 mA |
| Leistungsaufnahme / |
Power consumption: |
1,1 W |
| Temperaturbereich / |
Temperature: |
-30°C - +80°C |
| Gewicht / |
Weight: |
40 g |
| Abmessungen BxHxT / |
Dimensions WxHxD: |
80 x 25 x 48 mm |
|
This unit is only for automotive use and has tere fore a lifetime of max. 10 years.
Scope of Delivery
- 1 x Interface
- 1 x Operating manual
