| Producer Item No.: |
85700 / 1428 |
| Producer: |
BOA / Dietz |

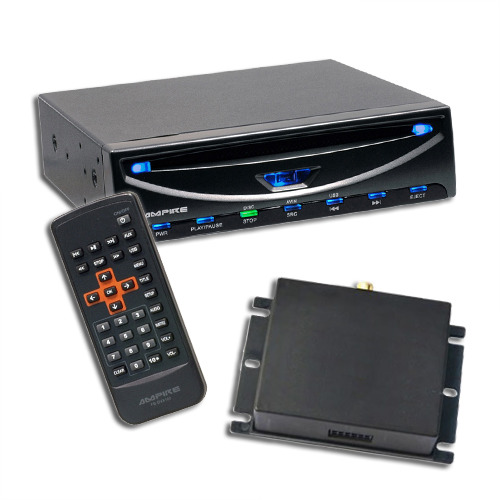

Get the Set now, DVD Player plus matching multimediainterface from Dietz.
Highlights
- Full integration of an aftermarket DVD player (Dietz 85700) into an OEM navigation system
- No OEM TV tuner required
- All important controls can easily be operated form the head unit (Console of the Navigation via included remote controle or steeringweel controle)
- High-Speed USB-Host to connect Memory sticks and HDD (up to 80 GB)
- Memory stick‘s or HDD control via IR-Remote Control
- Automatic switching of PAL/NTSC while operating
- Retrofitting an rear view camera with automatical switch is possible depending on the cameramodel
- The player can be mounted in any position and can be installed by the included external IR sensor also hiden.
- 5 m cable to install into the trunk or under the driverseat
- if you have a CD changer it can continue parallel
- Plug & Play for leased vehicles
- Dolby Digital and DTS 5.1 channel output (Coaxial)
- Video In- and Output (RCA)
The DVD player is convinces by its ability to read all current formats on all current media. Due to the high speed USB connection, this is also possible with memory sticks and with hard disks up to a capacity of approx. 80 GB. The player can be controlled in combination with the interface via radio- and steering wheel control.
| Technical data |
| Multi-Format support: |
mp3 / mp4 / mpeg4 Video / WMA / DivX 3.11 / 4.02 / 5.02 / 5.03 / 5.05 / DivX Pro / XviD / BivX / 3ivX / OGM / .srt, .sub, .txt subtitles |
| Supports: |
DVD (Single- und Double-Layer) / (S)VCD / CD(-R/RW) / JPG Picture-CD |
| USB Connection: |
frontside |
| Compatible: |
PAL / NTSC |
| e-mark: |
approved |
| Power supply connection: |
12 V |
| Dimensions: |
171 x 171 x 44 mm |
|
| |
The IMU (I-ntelligent M-ultimedia control U-nit) allows you to connect a DVD player BOA (Art.85700) to a
MERCEDES Comand 2.0 and APS220 navigation.
| Technical data |
| Software: |
SW 1.0.2 |
| Power supply: |
12 V DC |
| Working Voltage: |
10,0 – 14,6 V DC |
| Quiescent current: |
5 mA |
| Power consumption: |
0,40 W |
| Temperature range: |
-40 - +85 °C |
| Weight: |
0,192 kg |
| Dimensions: |
114 x 75 x 22 |
| Cable length: |
approx. 400 mm |
This unit is only for automotive use and has therefore a lifetime of max. 10 years.
Scope of Delivery
1x DVD-Player, USB-Connect. a. Coax. 5.1-out
1x 12 V Power supply connecting cabel
1x IR-Remote Control
1x IR Receiver
1x Fastening angle
1x IMU (Intelligent Multimedia Control Unit)
1x cable kit
5x shunt connector, red
1x instruction manual
