Handsfree (FSE) Extension Set for Porsche PCM 2.1
Product description :
- The interface enables a Bluetooth phone connection to a Porsche PCM2.1 navigation system.
- It is possible to change various volume options at the Bluetooth® Interface
- Operation like the origninal factory hands-free kit.
- Excellent voice quality even at high speed
- Parrot Bluetooth Chipset witch is capable of updates.
- Perfect integration / operation through the head unit or multifunction steering wheel
- Very simple installation with plug and play wire set
- Phone book including all call lists and SMS function (read)
- Very fast reading of the phone book
- Audiostreaming (A2DP) for playin of music from your mobile phone to the vehicle
- MP3 rendering in stereo
- Play the Voice over the original Car loud speakers
- Volume control and saving of the caller, (A2DP), rington and micro
- Display the provider and the signal strength
- Mute
- Voice detection or fixed choice of 7 languages
- The Hands-free kit is limited of 1000 entries (each call number is one entry)
- Place the calls, answer and end it through your radio / navi
- Volume can be controlled over the Radio, MFL and stayes saved.
- Display shows all important Data like phone book etc. in the instrument cluster (DIS)

| Technical data: |
| power supply: |
12V DC |
| voltage operating range: |
10,5 – 14,8 V |
| quiescent current: |
3mA |
| work current: |
500mA |
| power consumption: |
6,8W |
| temperature range: |
- 30°C up to + 80°C |
| weight: |
110g |
| Dimensions WxHxD: |
106 x 32 x 64 mm |
| |
|
| Cablecolour/Jack: |
Connection/Configuration: |
| Red: |
12V DC (continuous current) |
| Black: |
GND |
| 3.5 mm jack: |
microphone port |
Note: The product is designed for automotive use and therefore has a life span of at most 10 years.

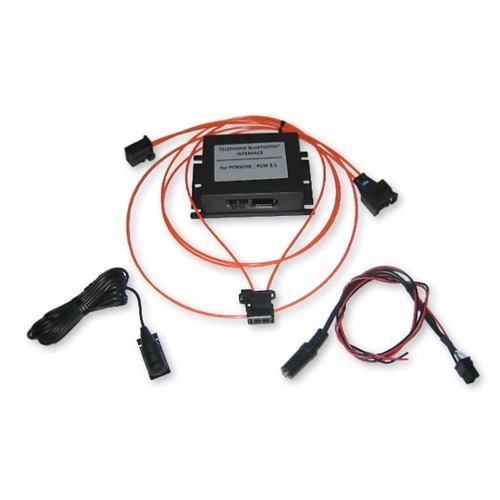

Scope of delivery
- 1x interface
- 1x cable set
- 1x microphone
- 1x instruction manual
