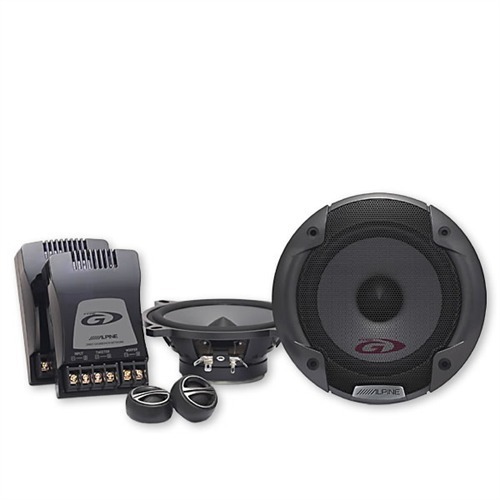

SPG-13CS - 2-way Component speaker

Built to Handle High Power The new Type-G Series of component and coaxial speakers are designed and built to handle high power levels. This speaker also delivers good sound quality, due to a soft dome tweeter, square voice coil wire with Kapton bobbin and an audio tuned capacitor.

Ease of Installation

These speakers are easier to install than other types due to the Snap Fit tweeter, swivel mount, and flush install bracket. In addition, the crossover network is small and can be separated into two parts to further reduce size and allow use of factory wiring.

Tweeter

• Tweeter Type: 20mm Silk Soft Dome Tweeter
• Application Type: Flush/Surface Swivel Mount
• Magnet Material: Neodymium Magnet

Woofer

• Cone Material: Polypropylene Cone Pearl Mica Injection
• Voice Coil Type: Square Voice Coil Wire
• Magnet: Ferrite Magnet
• Frame: Injection Mold Frame
• Design: Long Excursion Design

Crossover Network

• Design: Separated Network Design Possibility
• Attenuation Control: 3-Level
• Mounting: Easy-Mount Screw Terminals

Technische Daten / Technical Data

	Peak Power Handling	RMS Power Handling	Nominal Impedance	Frequency Response	Dimension (mm)
					A	B	C	D
SPG-17CS	280 W	70 W	4 Ω	68Hz - 20kHz	155,6	7,6	60,2	140,3
SPG-13CS	250 W	65 W	4 Ω	65Hz - 20kHz	139,3	8,2	42,2	109,9
SPG-17C2	240 W	60 W	4 Ω	68Hz - 20kHz	155,6	9,9	60,2	140,3
SPG-13C2	200 W	50 W	4 Ω	82Hz - 20kHz	139,3	8,2	42,2	109,9
SPG-69C3	350 W	90 W	4 Ω	65Hz - 19kHz	167 x 119	12,2	75,6	149,9
SPG-69C2	300 W	75 W	4 Ω	65Hz - 18kHz	167 x 119	12,2	75,6	149,9
SPG-10C2	180 W	45 W	4 Ω	101Hz - 18kHz	117,1	13,5	42,5	90,4

Scope of Delivery

• Speaker (woofer)
  • 2 x Speaker (woofer)
  • 2 x Protective cover for the speakers
  • 8 x Wood screws (4 x 25mm)
  • 6 x Mounting bracket (1)
• Tweeter
  • 2 x Tweeter with cable
  • 2 x Mounting rings (1)
  • 2 x Mounting screws (M3 x 6mm)
  • 2 x Mounting bracket (2)
  • 2 x Mounting bracket (3)
  • 4 x Wood screw (3 x 8mm)
  • 2 x Cushion rings
  • 2 x Mounting rings (2)
  • 2 x Mounting rings (3)
  • 2 x Mounting rings (4)
  • 2 x Mounting rings (5)
  • 4 x Wood screws (4 x 20mm)
  • 4 x Mounting bracket (4)
• Crossover
  • 2 x 2-2-way Crossover
  • 4 x Mounting screws (4 x 20mm)
  • 4 x Mounting bracket (5)
  • 1 x Installation information on the package
