| Producer Item No.: |

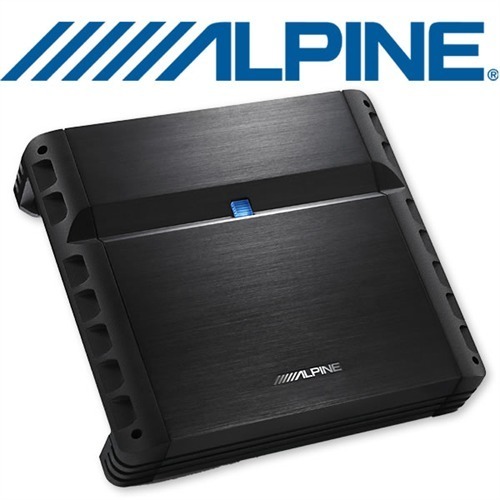

PMX-F640 |
| Producer: |
ALPINE |
| EAN: |
4958043510832 |
Designed for Europe
This new amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system.
High Power, Great Value
This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.
High Pass and Low Pass Filters
These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.
Bass EQ for Best Bass
Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.
Install
- Terminal Layout: Two-Sided
- Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
General
- Amplifier Type: Class-A/B
- Channel Design: 4/3/2 Channel
- Thermal Control: Thermal Management Control
- Power Supply: DC-DC PWM Power Supply
- Power Supply Design: MOSFET Power
- Board Circuitry: STAR Circuitry
- Current Protection: Over-Current, Over-Voltage and Thermal Protection
- Power Indicator: Top Mounted Blue LED Power Indicator
- RCA Output: Gold Plated RCA Input Connectors
- Speaker-Level Inputs: Speaker Level Inputs
- Crossover: Selectable Low-Pass / High-Pass
- Connector Plating: Gold Plated Input, Output, Power and Speaker Terminals
- Pre-Amp Stage: Discrete
- Final Outputs: Non-Fading Pre-Amp Output
- Gain Control: Continuously Adjustable Gain Control
Technical Data
| Maximale Leistung / Max. Power |
|
| Max Leistung / |
Max. Power: |
640W |
| Ausgangskanäle / |
Output Channels: |
4-channel |
|
| RMS-Leistung / Max. Power |
|
| pro Kanal 4 Ω (≤1%THD+N) / |
per channel into 4 Ω (≤1%THD+N): |
4 x 50W |
| pro Kanal 2 Ω (≤1%THD+N) / |
per channel into 2 Ω (≤1%THD+N): |
4 x 75W |
| Brückenleistung 4 Ω (≤1%THD+N) / |
Bridged into 4 Ω (≤1%THD+N): |
2 x 150W |
|
| Sound Tuning |
|
| Frequenzweichen: Fix, OFF/LPF/HPF wählbar, 1/2 ch / |
Crossover Frequency (Fix, OFF/LPF/HPF Selectable) 1/2 ch: |
80 Hz (-18dB/oct) |
| Frequenzweichen: Fix, OFF/LPF/HPF wählbar, 3/4 ch / |
Crossover Frequency (Fix, OFF/LPF/HPF Selectable) 3/4 ch: |
80 Hz (-18dB/oct) |
| EQ (Equalizer) Bass EQ bei Fix 50 Hz wählbar / |
EQ (Equalizer): Bass EQ Fixed Frequency 50 Hz _ Selectable Gain: |
0/+6/+12 dB (3/4ch) |
|
| Funktionen / Functions |
|
| Filter wählbar / |
Filter selectable: |
OFF / LP / HP |
| LP / |
LP: |
80Hz 18dB/oct |
| HP / |
HP: |
80Hz 18dB/oct |
| Bass EQ wählbar/ |
Bass EQ selectable: |
0dB / 6 dB / 12dB |
|
| Abmessungen / Dimensions |
|
| Auflagefläche / |
Footprint: |
270 mm x 60 mm x 242 mm |
|
| Allgemein / General |
|
| Spannungsversorgung / |
Power Requirements: |
14.4 V DC (11 V bis / to 16 V) |
| Eingangsempfindlichkeit / |
Input Sensitivity: |
0,2 -4,0 V (RCA Input) |
| Eingangswiderstand / |
Input Impedance: |
RCA IN 10 kΩ / SP IN 10 kΩ |
| Frequenzgang / |
Frequency Response: |
10 Hz - 50 kHz (+ 0,-1 dB) |
| Lautsprecher Impedanz / |
Speaker Impedance: |
4 oder / or 2 Ω |
| Signal Rauschabstand / |
Signal to Noise (S/N Ratio - IHF A Weighted, Reference rated power into 4Ω): |
90 dB |
| Gewicht / |
Weight: |
3.0 Kg |
|
| |
Scope of Delivery
- 1 x PMX-F640 - 4 channel amplifier
- 1 x Power cable
- 1 x Plastic bracket
- 4 x Wood screws (23mm)
- 4 x Machine screw (13mm)
- 2 x User information (DE / IT / SV / EN / FR / ES)
