| Producer Item No.: |
SPG-17C2 |
| Producer: |
ALPINE |
| EAN: |
4958043518173 |

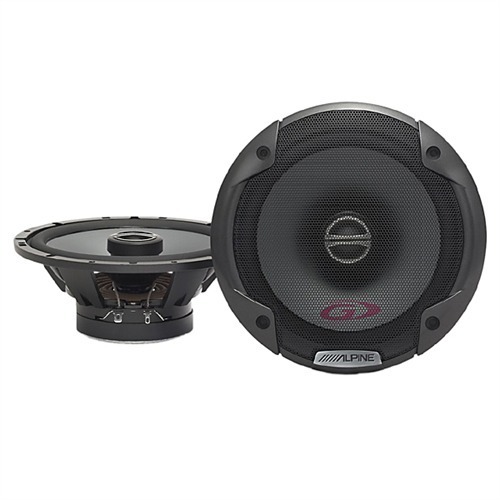

Built to Handle High Power The new Type-G Series of component and coaxial speakers are designed and built to handle high power levels. This speaker also delivers good sound quality, due to a soft dome tweeter, square voice coil wire with Kapton bobbin and an audio tuned capacitor.
High quality parts and advanced design give these speakers outstanding performance.
Tweeter
- Tweeter Type: 20mm Silk Soft Dome Tweeter
- Magnet Material: Neodymium Magnet
Woofer
- Cone Material: Polypropylene Cone Pearl Mica Injection
- Voice Coil Type: Square Voice Coil Wire
- Magnet: Ferrite Magnet
- Frame: Injection Mold Frame
- Design: Long Excursion Design
Technical Data
| SPECIFICATIONS |
| Power Handling |
|
| Peak Power: |
240 W |
| RMS Power: |
60 W |
| |
| Dimensions |
|
| Woofer Mounting Diameter: |
14.1 cm |
| Woofer Mounting Depth: |
6.1 cm |
| |
| General |
|
| Frequency Response: |
68 Hz to 20 kHz |
| Impedance: |
4 Ohm |
| Sensitivity: |
88.5dB / W (1m) |
| |
| |
Scope of Delivery
- 2 x Speakers
- 2 x Grills
- 8 x Screws (4x35mm)
- 8 x Screwangles
