Profit for digital TV reception in cars
Equipment

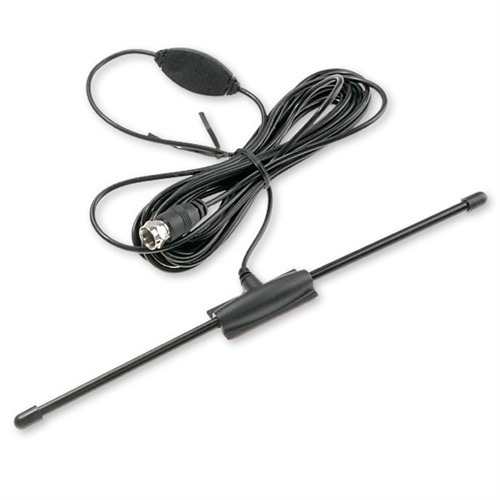

- Active window antenna for adhesive AMPIRE DVBT50/51/100/200 and other DVB-T receiver with 5-volt phantom powering, DVB-T receivers without 5-volt phantom power per antenna, you need a GSW300.
- for vertical mounting in front, rear and side windows suitable
- 5m cable length with angled F connector (75 ohms)
- black anodized antenna reflectors
- Frequency range 174-230 VHF, UHF 470-862MHz.
- Gain: +20 dB
- Operating voltage 5 V DC
- Power consumption 18-20mA
- Operating temperature -20° C to +65° C
- to be consistent with RoHS
- Dimensions 241 x 19 x 13mm (LxWxH)
- Quantity 1 piece
Note: Please note that you always need two antennas for a diversity receiver.
Scope of Delivery
