Product description
Interface for the connection of extern stereo-audio source for Audi, BMW, Mercedes or Porsche navigation systems.
The AUX-110 emulates a factory CD changer and will be recognized and presented as the head unit.
Emulation of the additional audio input as a second CD changer (CD7) in Audi MMI 2G that can be installed to the first changer. In BMW, Mercedes and Porsche will be emulated the additional audio input via the CD changer (CD1), thereby the existing factory CD changer can not be used.
General
- Connections (interface-box)
- Stereo-in Cinch/RCA female (2x) (front side)

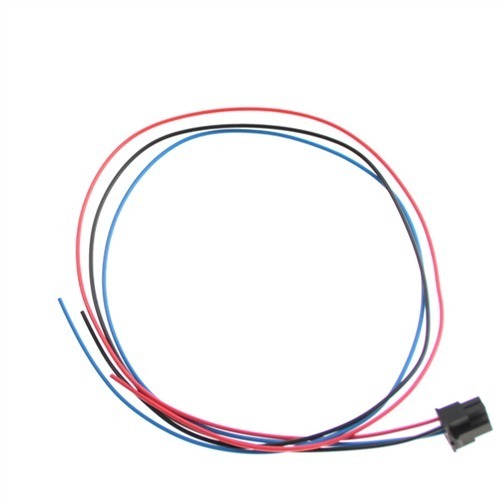

- 8pin Molex (back side)

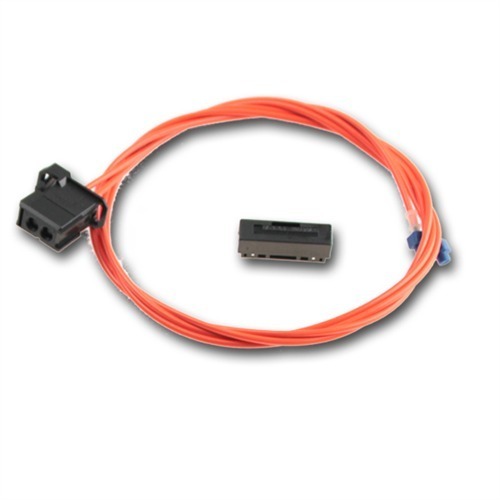

- MOST®-connector female (back side)
Technische Daten / Technical Data
| |
| Betriebsspannung | Operation voltage | 10.5 – 14.8V |
| Stand-by Leistungsaufnahme | Stand-by power drain | <1mA |
| Betrieb Stromaufnahme | Operation power drain | 120mA |
| Leistungsaufnahme | Power consumption | 1.8W |
| Temperaturbereich | Temperature range | -30°C to +80°C |
| Gewicht | Weight | 95g |
| Abmessungen (nur Interface-box) | Measurements (interface-box only) | 106 x 30 x 71 mm (W x H x D) |
| | | |
| | | |
Scope of delivery
- 1x Interface
- 2x Harness
- 1x Accessories
- 1x Description
