| Producer Item No.: |
eX-10 |
| Producer: |
ALPINE |
| EAN: |
4958043536917 |
iPod® Solutions for Any Vehicle
The eX-10 lets you easily connect an iPod® to your original car stereo – giving you built-in Bluetooth phone operation, full control over your iPod® including Quick Search and a cool dash-mount display.
The easiest way to integrate your iPod® into your car stereo system – and get Bluetooth phone operation!
Ready, Set, Go!
Everything about the eX-10 is simple and easy, including setup. Just put the monitor on your dashboard (no tools needed!), plug it into the cigarette lighter socket, then connect your iPod with the included cable – and you’re ready to go!
Works With Any Radio
The innovative eX-10 features a built-in, top-quality FM transmitter, that broadcasts the iPod signal straight to your factory car radio. The result? Great sound quality and full integration of the iPod into your vehicle.
Stay Connected With Bluetooth
Built-in Bluetooth capability gives you wireless, hands-free operation of your Bluetooth-enabled phone, plus caller number display, and even streaming music playback.
The iPod® Edge
The eX-10 and its high-resolution display provides three different viewing modes, including album artwork display, and gives you advanced Quick Search features. The Full Speed connection means you can access all your iPod songs and info instantly!
Highlights
- 2.2” high-resolution TFT display (5,5 cm)
- Full Speed connection all iPod models with dock connector
- Built-in high quality FM transmitter and modulator
- Works with any car radio
- Quick Search
- 3 viewing modes for iPod playback
- Album artwork display
- Built-in Bluetooth module for hands-free phone operation
- Compatible with many Bluetooth enabled mobile phones
- Caller’s voice heard through vehicle speakers
- Phonebook access
- Caller ID display
- Audio Streaming Ready AUX output (mini-jack)
- Included wireless remote control, wire harness, power adapters for cigarette lighter socket and microphone
Technical Data
| Bluetooth Section |
|
| Bluetooth-Version: |
Bluetooth 1.2 certified |
| Output Power: |
max. +4 dBm (Power class 2) |
| HFP: |
(Hands-Free Profile) |
| HSP: |
(Head Set Profile) |
| A2DP: |
(Advanced Audio Distribution Profile) |
| AVRCP: |
(Audio Video Remote Control Profile) |
| |
| Remote control |
|
| Battery type: |
CR2025 Battery |
| Width: |
36 mm (1-7/16") |
| Height: |
100 mm (3-15/16") |
| Depth: |
12,4 mm (15-32") |
| Weight: |
31 g (Battery excluded) |
| |
| General |
|
| Power Requirement: |
14,4 V DC (11 bis 16 V allowable) |
| Maximum Pre-Output Voltage: |
AUX 1.200 mV |
| |
| Chassis size (Monitor section) |
|
| Width: |
78,6 mm (3-1/16") |
| Height: |
55,7 mm (2-1/4") |
| Depth: |
20,2 mm (25/32") |
| Weight: |
78 g (Monitor)60 g (Stand) |
| |
| Chassis size (I/Fbox) |
|
| Width: |
58,7 mm (2-5/16") |
| Height: |
27,7 mm (1-1/8") |
| Depth: |
85,5 mm (3-3/8") |
| Weight: |
72 g |
| |
| |

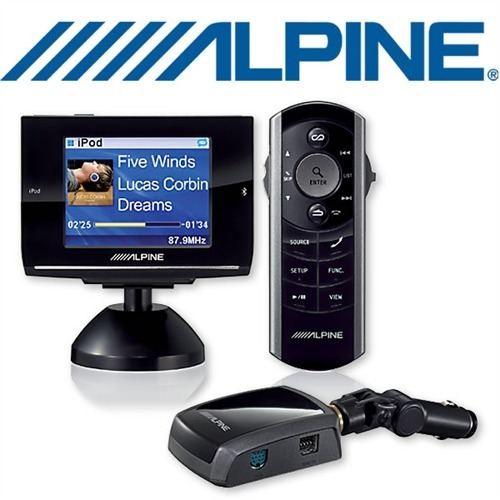

Scope of Delivery
- 1 x eX-10 - Monitor
- 1 x Holder
- 1 x Interface box for cigarette lighter
- 1 x Monitorkabel (3 m)
- 1 x iPod FULL SPEED ™ Connection Cable (1 m)
- 1 x Extension Cable for Cigarette Lighter Adapter (1 m)
- 1 x Cigarette lighter adapter
- 1 x microphone (3 m) including mounting clip and adhesive pad
- 1 x Double sided tape (for holding)
- 2 x Velcro (for the cigarette lighter adapter)
- 3 x Mounting screws
- 3 x Cable clips
- 1 x Cloth
- 1 x Remote control
- 1 x Battery (CR2025)
- 1 x User Manual & Installation Guide (EN / DE / FR / ES / IT)
