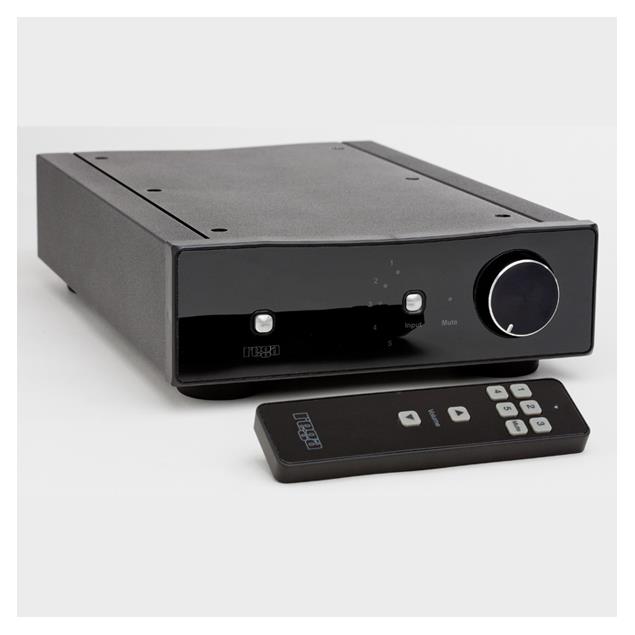

Rega BRIO-R - integrated power amplifier (black)

Highlights

		excellent workmanship
		New Output Amplifier
		High Quality Components
		Improved Power Supplies
		Custom Case & Design
		very good value for money
		Plug & Play

Product Description

The award winning Brio-R embodies all the necessary ingredients to become a hi-fi classic. Housed in our custom half width case, you will find a 73w per channel into a 4 ohms integrated amplifier with a high spec built in phono stage. A unique circuit is built around a substantial toroidal transformer, generous power supply components, a rugged output stage, with the use of film capacitors in the signal path and at all critical positions within the phono amplifier. The performance speaks for itself; control, balance and detail make this amplifier a must on the demo list.

Discover your own personal sound experience

In our living room studio "Klangvilla" in Leipzig we feature more Rega products which are at all times ready for presentation. You will have the option to be explained and demonstrated also other high-quality high-end devices of the brands Sonus Faber, Burmester, Dali, Canton, T + A and Meridian by our sales manager who will be available for you. We can also recommend the appropriate wiring and other high quality Hi-Fi accessories. Please just simply arrange a date for demonstration or consulting service with our home Hi-Fi sales manager by e-mail (info@klangvilla.de) or by telephone (0341 / 303458-11).

Technische Daten / Technical Data

Spezifikationen / Specifications - Brio-R Vollverstärker
Ausgangsleistung /	Output power:	8Ω: 50 Watt RMS 4Ω: 73 Watt RMS
Stromaufnahme /	Power consumption:	8Ω: 195 Watt @ 230/115 Volt
Eingang 1 /	Input 1:	Phonoeingang für / phono input for MM/MC-Systeme: 2.1 mV @ 47 kO Maximaler Eingangspegel / max. input level: 100 mV
Eingang 2-5 /	Input 2-5:	Cinch-Hochpegeleingänge / Cinch high level input: 210 mV @ 47 kO Maximaler Eingangspegel / max. input level: 10.25 V
Ausgangsempfindlichkeit /	Output sensitivity:	Record Record-/Tapeausgang / tape output: 210 mV Ausgangsimpedanz / output impedance: 470Ω
Frequenzgang /	Frequency response:	Input 1: 15 Hz - 40 kHz (@ -3dB) / 27 Hz - 20.5 kHz (@ -1 dB) Input 2-5: 12 Hz (@ -1 dB) - 43 kHz (@ -3 dB)
Maße (H x B x T)/	Dimensions (H x W x D):	8 x 22 x 32 cm
Gewicht /	Weight:	7kg

Scope of Delivery

• 1 x Rega - Brio-R amp
• 1 x manual
• 1 x remote control
