|optically sophisticated interweaving of the strands||robust plastic sheathing|
|OFC – oxygene free copper||cable is black & brown color-mixed|
|massive and high-quality copper conductors||frequency response ± 0.5 dB: dc - 50 kHz|
|(Cp) parallel capacitance: 742.0 pF @ 20 kHz||(Ls) series inductance: 0.459 µH @ 20 kHz|
|(Rdc) dc loop resistance: 0.021 Ohm||(Xt) total reactance: 0.057 Ohm @ 20 kHz|

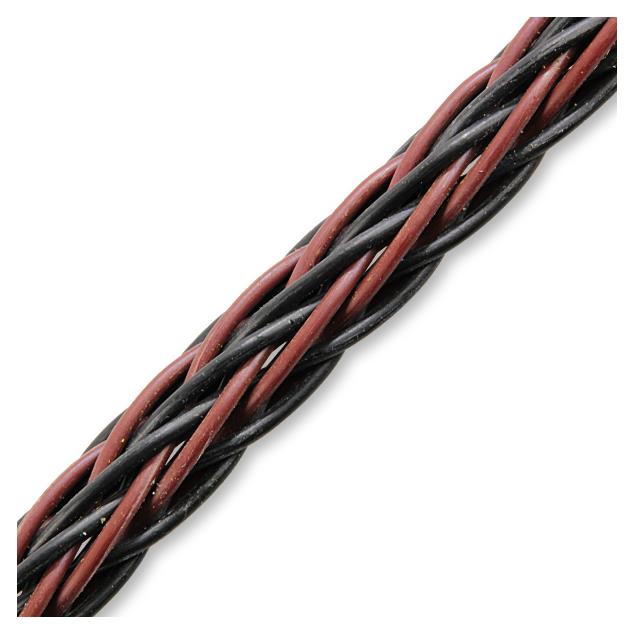

This quality loudspeaker cable is characterized particularly by its optically sophisticated interweaving of the strands - a striking feature.

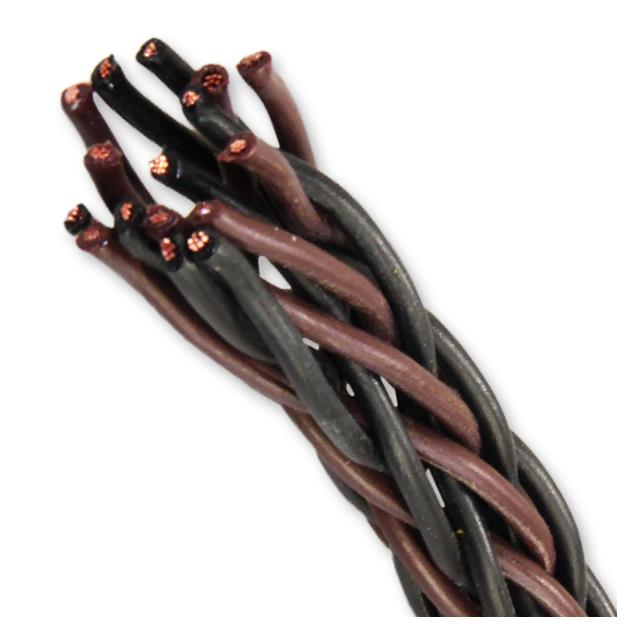

The construction consists of eight brown and eight black conductors, arranged in a large format braid. Individual conductors are high-purity copper. The aggregate wire size is two 10 awg conductors. 8PR provides a sound that is full bodied and powerful, making it ideal for subwoofers and the low frequency section of bi-wired speakers as well as full range applications.
|Kimber Kable - 8PR - high-quality loudspeaker cable - specially woven|
|Kabel-Geometrie /||Cable geometry:||rund / round|
|Aussehen /||Appearance:||schwarz&braun / black&brown|
|Kabelquerschnitt /||Cable cross-section:||2 x 5,2 mm²|
|Kabellänge /||Cable length:||2 x 1,50 m|
|Signalrichtung /||Signal direction:||IN / OUT|
|Kabel-Ummantelung /||Cable sleeving:||Kunststoff PVC / plastic|
|Innenleiter-Material /||Inner conductor material:||sauerstofffreies Kupfer / oxygen free copper|
This product contains 2 x 1,5m.
These cables are not pre-assembled. This means they are not stripped and supplied without connectors.
You need the cable ready-made? We also can help you. Send us an email to firstname.lastname@example.org and tell us wich specifying the desired connector or pin sockets and we will be ready to cut the cable to length, remove paint and also make it ready by additional charge.
