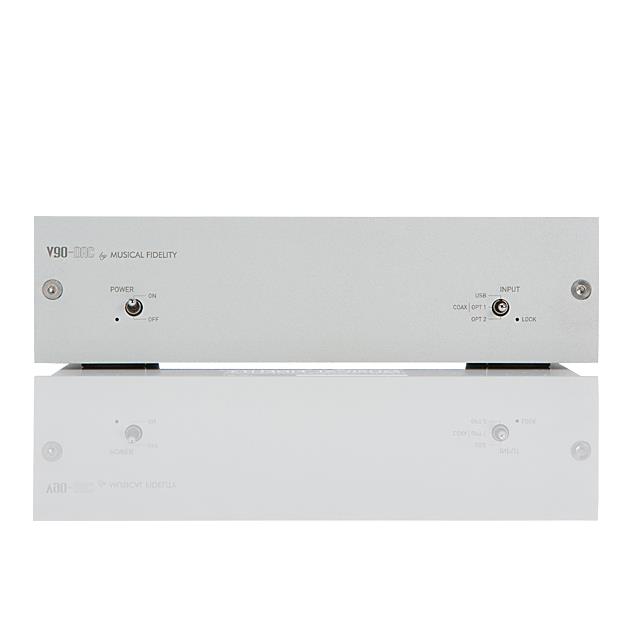

Musical Fidelity V90-DAC - Digital/analog converter (32 bit / silver / 1 piece)

Highlights

		32 Bit
		excellent performance
		beautiful design and excellent production quality
		including Coax, Toslink and USB digital inputs

V90-DAC - Overview

The V90-DAC is the perfect way to upgrade the performance of a wide range of music sources. Housed in a solid yet discreet case, it unites sleek design and technical excellence to offer unrivalled musical enjoyment.

Offering Coax, Toslink and USB digital inputs, the V90-DAC is the ideal partner for a wide array of audio equipment. From PC and MAC computers, music streamers and set-top boxes to more conventional music sources such as CD and digital radio the V90-DAC delivers high-end sound quality at an affordable price.

The V90-DAC deploys a "state-of-the-art" 32 Bit Digital/Analog Converter housed in solid yet discreet attractive brushed aluminum case. It unites sleek design and technical excellence to offer unrivaled musical enjoyment.

V90-DAC - Design and Build

The V90-DAC was designed to bring musical joy to the widest selection of enthusiasts possible. Musical Fidelity’s engineering team looked carefully at the requirements of modern music sources to ensure the V90 delivered the perfect balance of technical performance, sleek and attractive looks and outright musical enjoyment.

The heart of the V90-DAC is its 32 bit DAC circuit. Delivering a remarkable low jitter of just 12 picoseconds and a signal to noise ratio better than -117dB the V90-DAC offers a technical performance only usually found in much more expensive products.

While world-class technical measurements were a key goal of the V90-DAC design process, it was also conceived to offer compatibility with a wide range of commonly used music sources. Its Asynchronous USB connection offers a highly musical way to playback computer based audio while its simple installation procedure with both Windows and MAC computers means new owners will quickly be enjoying their favorite music without unnecessary distraction.

The V90-DAC is a beautifully engineered yet affordable way to bring listeners as close to the original musical performance as possible.

Technische Daten / Technical Data

MUSICAL FIDELITY - V90-DAC - Digital/Analog Converter
Leistung /	Performance:
Jitter /	Jitter:	<12 ps Spitze zu Spitze / <12 picoseconds peak to peak
THD (+ Rauschen) /	THD(+ noise):	<0,004% typisch (20Hz bis 20kHz) / <0.004% typical (20Hz to 20kHz)
Übersprechen /	Crosstalk:	-104dB, 20Hz - 20 kHz
Signal-Rauschverhältnis /	Signal to Noise Ratio:	-117dB, 20Hz - 20 kHz
Frequenzbereich /	Frequency Response:	+0, -1 DB, 20Hz - 20 kHz
Eingänge / Ausgänge /	Inputs/Outputs:
Eingänge /	Input:	1x Cinch-Koaxial-Stecker SPDIF 32-192 kbps (16-24 bit Stereo PCM) 2x optischer TOSLINK-Anschluss 32-96 kbps (16-24 bit Stereo PCM) 1x USB Typ "B"-Stecker - Asynchroner Datenstrom mit bis zu 24-bit/96kHz (von Quelle / Computer-Einstellungen festgelegt) 1x RCA coaxial connector SPDIF 32-192 kbps (16-24 bit stereo PCM) 2x optical TOSLINK-connector 32-96 kbps (16-24 bit stereo PCM) 1x USB type 'B' connector - Asynchronous data stream at up to 24-bit/96kHz (Determined by source file/computer settings)
Ausgänge /	Outputs:	1 x RCA / Cinch-Line-Pegel (ausgewählten Schalter, Fest 0 dB) 1 x RCA / Phono Line Level (switch selected, fixed 0dB)
Allgemeines /	General:
Abmessungen (BxHxT) /	Dimensions (WxHxD):	170 mm x 47 mm x 102 mm
Gewicht (unverpackt / verpackt) /	Weight (unpacked / packed):	600g / 1.1 kg

Note

Musical Fidelity behält sich das Recht vor, Verbesserungen vorzunehmen, die in Änderungen der technischen Daten resultieren können.

Musical Fidelity reserves the right to make improvements which may result in modifications to the technical data.

Scope of Delivery

• 1 x V90-DAC - Digital/Analog Converter
• 1 x 12v 500mA DC power supply
• 1 x Instruction Manual
