DALI Rubicon 8 - 3-Way bass reflex floorstanding loudspeaker (40-250 W / rosso veneer /1 piece)

Highlights

		qualitative floorstanding loudspeaker for residential use in noble rosso veneer
		beautiful design and excellent workmanship
		also available in high gloss white, high gloss black and walnut veneer
		optimum performances - strong power handling
		enormously capable and tremendously versatile
		we are specialized dealer for DALI products - your authorized dealer in Leipzig

Product Description

Drivers
Assembled in-house, every driver in each of the RUBCION models are configured to match the model they are destined for. The three 6½ inch drivers used in RUBICON 8 all work together to reproduce a clean, detailed sound with no colouration. The RUBICON series draws upon the heritage from the SMC based ‘Linear Drive System, which was introduced with the EPICON series. With the use of the technology from the SMC drivers, we have taken a step closer to remove a very large part of the unwanted distortion. The bass drivers are optimized for long excursion, and the midrange driver for a large useful frequency range insuring that the roll-off is handled in the crossover and not in the driver. All this ensures that the benefit from SMC can be enjoyed by even more Hi-Fi lovers around the world.

Tweeters
In the RUBICON series, DALI makes use of both the soft dome tweeter working alone, and the hybrid tweeter configuration an amazing rendering of the high frequencies. The voice coil used in the RUBICON series is designed to be very light and agile in order to achieve a broader bandwidth. This lighter voice coil is placed inside a powerful ferrite magnet that keeps a tight control of its movements. The ribbon tweeter is the master of wide dispersion and combining it with the soft dome, the tweeter module starts working as low as 2.5 KHz. This extreme bandwidth combined with the ultra wide dispersion is an important part of the DALI sound philosophy.

Cabinet
The gracefully elegant exterior of the RUBICON works as the base for the low-loss drivers. In every cabinet, the mid-range and bass drivers are separated into their own chambers. Turbulence is minimized through a bass reflex port, which is placed directly behind every woofer, and the timing between the woofer and the bass port is thereby also optimized.

Attention: Rubicon 8 is also available in high gloss white, high gloss black and walnut veneer.

Discover your own personal sound experience

In our living room studio "Klangvilla" in Leipzig we feature more DALI products which are at all times ready for presentation. You will have the option to be explained and demonstrated also other high-quality high-end devices by our sales manager who will be available for you. We can also recommend the appropriate wiring and other high quality Hi-Fi accessories. Simply arrange a consultation or demonstration with our sales manager for home hi-fi.

Technische Daten / Technical Data

Spezifikationen / Specifications - Rubicon 8 - 3-Way bass reflex floorstanding loudspeaker in rosso veneer
Produktserie /	Product series:	Rubicon
Bauart /	Speaker type:	Front; Rear; Surround
Frequenzbereich (+/- 3 dB) /	Frequency range (+/- 3 dB):	38 - 34.000 Hz
Empfindlichkeit (2,83V/1m) /	Sensivity (2,83V/1m):	90.5 dB
Nennimpedanz /	Nominal impedance:	4 Ohm
Maximaler Schalldruckpegel /	Maximum SPL	112 dB
Empfohlene Verstärkerleistung /	Recommended amplifier power:	40 - 250 W
Übergangsfrequenzen /	Crossover frequency:	500/800/2.500/14.000 Hz
Frequenzweichenprinzip /	Low frequency driver:	2½-Wege + ½-Weg + ½-Weg / 2½-Way + ½-Way + ½-Way
Hochtöner /	Tweeter (high frequency driver):	1 x 17 x 45 mm Rollband / ribbon; 1 x 29 mm Gewebekalotte / soft textile dome
Tieftöner /	Woofer (low frequency driver):	3 X 6.5" Holzfaserkonus / wood fibre cone
Gehäusetyp /	Enclosure type:	Bassreflex / bass reflex
Bassreflex-Abstimmfrequenz /	Bass reflex tuning frequency:	33,5 Hz

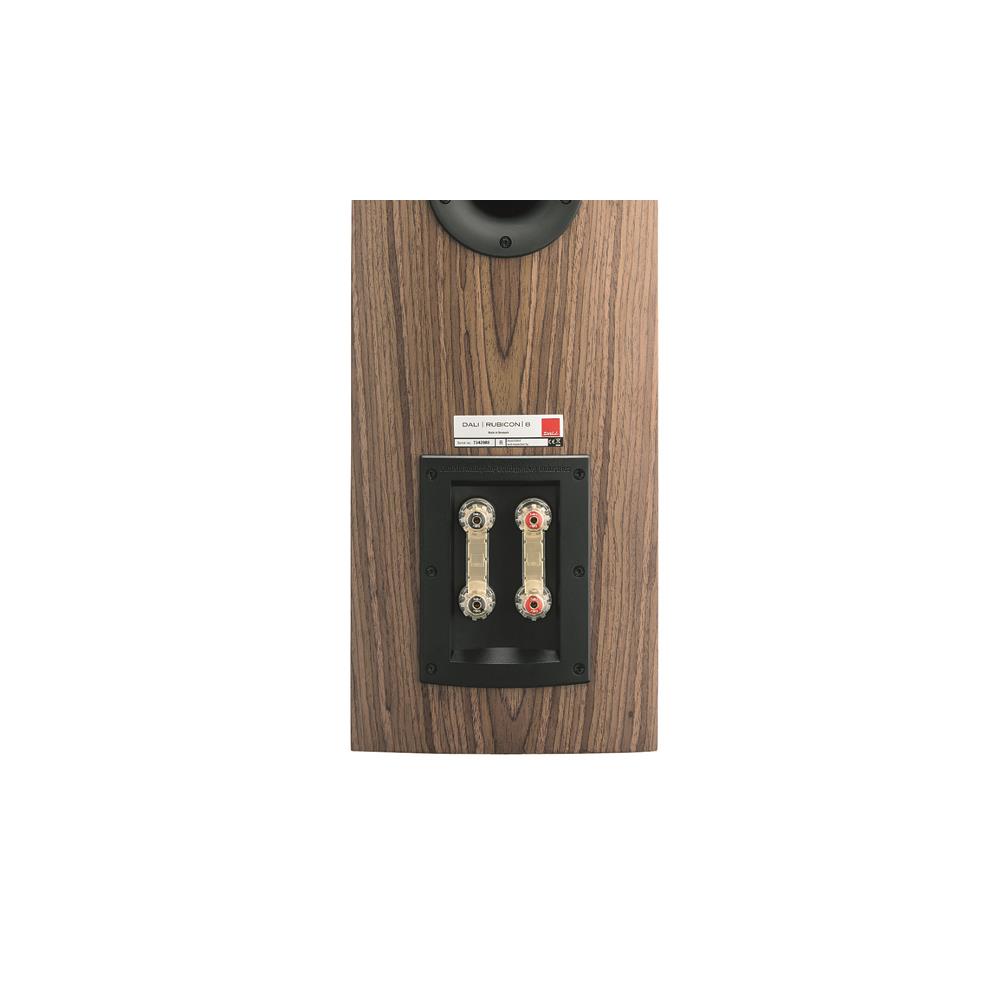

Anschluss Eingang /	Connection input:	Doppelter Draht / Bi-Wire
Empfohlene Aufstellung /	Recommended placement:	Boden / floor
Empfohlener Wandabstand [cm] /	Recommended distance from wall [cm]:	20 - 180
Magnetische Abschirmung /	Magnetic shielding:	Keine / none
Maße (H x B x T) /	Dimensions (H x W x D):	1,100 mm x 220 mm x 445 mm
Gewicht pro Lautsprecher /	Weight per speaker:	27,3 kg
Ausführung /	Finish:	Rosso Furnier / rosso veneer

Scope of Delivery

• 1 x DALI - Rubicon 8 - 3-Way bass reflex floorstanding loudspeaker in rosso veneer
• 4 x rubber bumpers (adhesive feet)
• 4 x spikes
• 1 x operating instruction / user manual
