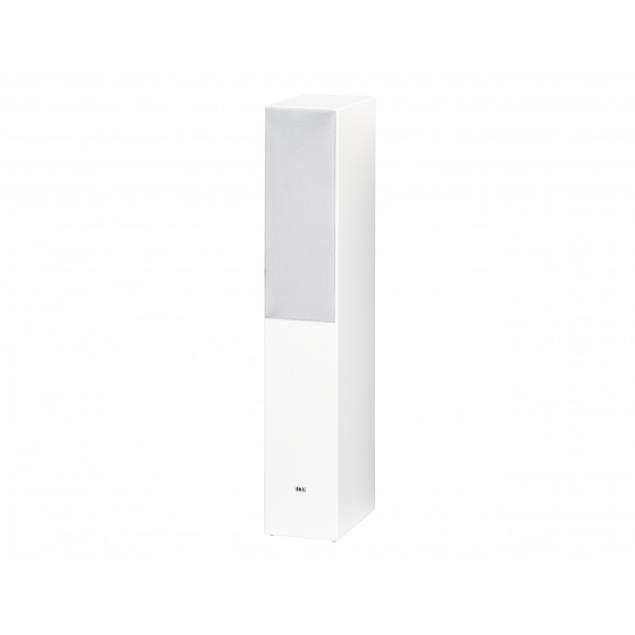

Elac FS 77 - 2-way floorstanding loudspeaker (20-150 Watts / lacquered matt white / 1 piece)

Features

		qualitative floorstanding loudspeaker in lacquered matt white for residential use
		beautiful design and excellent workmanship
		very good value for money
		optimum performances - strong power handling
		enormously capable and tremendously versatile
		we are specialized dealer for ELAC products - your authorized dealer in Leipzig

Product Description

Designed to inspire.

Inspired by the pursuit for simplicity and understatement, Line 70 combines stunning contemporary design with simple colors, finishes and a focus on the essential. Of course, the sound is anything but understated, a result of years creating loudspeaker systems that endure the test of time.

Dimensions made for living

The Line 70 is made to perform without ever taking center stage in your interior. Rather, the slender aspect and small footprint of each Line 70 loudspeaker gives it a musical presence far greater than its size would suggest.

Clarity and precision

A 25 mm soft-dome tweeter delivers clear, clean upper frequencies beyond audibility. Fast, articulate midrange/woofers—from 115 mm to 150 mm—bring up the bottom to deliver bass that provides a solid foundation for music.

Elegant player

A floor-standing, 2-way, bass-reflex loudspeaker that is elegant and slender, the FS 77 delivers extraordinary performance in a relatively modest package. Its discreet appearance makes it the perfect complement to the most refined interior.

Discover your own personal sound experience

In our living room studio "Klangvilla" in Leipzig we feature more Elac products which are at all times ready for presentation. You will have the option to be explained and demonstrated also other high-quality high-end devices by our sales manager who will be available for you. We can also recommend the appropriate wiring and other high quality Hi-Fi accessories. Simply arrange a consultation or demonstration with our sales manager for home hi-fi.

Technical Data

Specifications - ELAC - FS 77 - 2-way floorstanding loudspeaker
Bauart /	Speaker type:	2-Wege; Bassreflex / 2-way; bass reflex
Hochtöner /	Tweeter (High Frequency Driver):	1 x 25 mm Kalotte / dome
Tieftöner /	Woofer (Low Frequency Driver):	2 x 158 mm Konus / cone
Gehäusetyp /	Enclosure Type:	Bassreflex / bass reflex
Übergangsfrequenz /	Crossover frequency:	2.300 Hz
Frequenzübergang /	Frequency response:	42-28.000 Hz
Empfindlichkeit /	Sensivity:	89 dB / 2,83 V/m
Empfohlene Verstärkerleistung /	Recommended amplifier power:	20–150 W pro Kanal / per channel
Nennbelastbarkeit /	Nominal power handling:	80 W
Musikbelastbarkeit /	Peak power handling:	120 W
Nennimpedanz /	Nominal impedance:	4 Ohm; Minimum 3,9 Ohmk bei/at 240 Hz
Bindungspfosten /	Binding posts:	5-Wege-Metall / 5-way metal
Magnetisch geschirmt /	Magnetic shielding:	Nein / no
Empfohlene Aufstellung /	Recommended placement:	Boden / floor
Maße (H x B x T) /	Dimensions (H x W x D):	97,5 cm x 17,0 cm x 27,5 cm
Gewicht pro Lautsprecher /	Weight per speaker:	ca. 15,3 kg
Gewicht pro Lautsprecher inklusive Verpackung /	Weight per speaker including packaging:	ca. 17,3 kg
Ausführung /	Finish:	Seidenmatt weiß lackiert / lacquered matt white

Scope of Delivery

• 1 x ELAC - FS 77 - 2-way floorstanding loudspeaker in lacquered matt white
• 1 x fabric grille
• 1 x user's guide / manual
