Technics SB-R1 - 3,5-Way bass reflex floorstanding loudspeakers - reference speaker system (300 Watts max. input power / coaxial / high-gloss black / 1 pair)

Highlights

		qualitative 3,5-Way floorstanding loudspeakers in noble high-gloss black
		precise sound image
		300 Watts max. input power
		beautiful design and excellent worksmanship
		optimum performances - strong power handling
		enormously capable and tremendously versatile
		these floorstanding loudspeakers are part of the legendary Technics Reference series
		we are specialized dealer for TECHNICS products - your authorized dealer in Leipzig

Product Description

Speaker System SB-R1
Achieves a superlative level of sound reproduction, building on our linear-phase, point-sound-source concept.

Point Sound Source Speaker System
For soundstage focus and precise imaging, the wave-fronts from a speaker’s drive units should ideally be aligned, arriving simultaneously at the listener’s ears regardless of the listening position. In other words, the speaker system should appear to have have only one point sound source.
The newly developed flat coaxial two-way speaker unit, combining midrange and treble drivers, works with a virtual coaxial woofer to realise a point sound source, providing smooth directional characteristics over the entire frequency range, without peaks or dips.

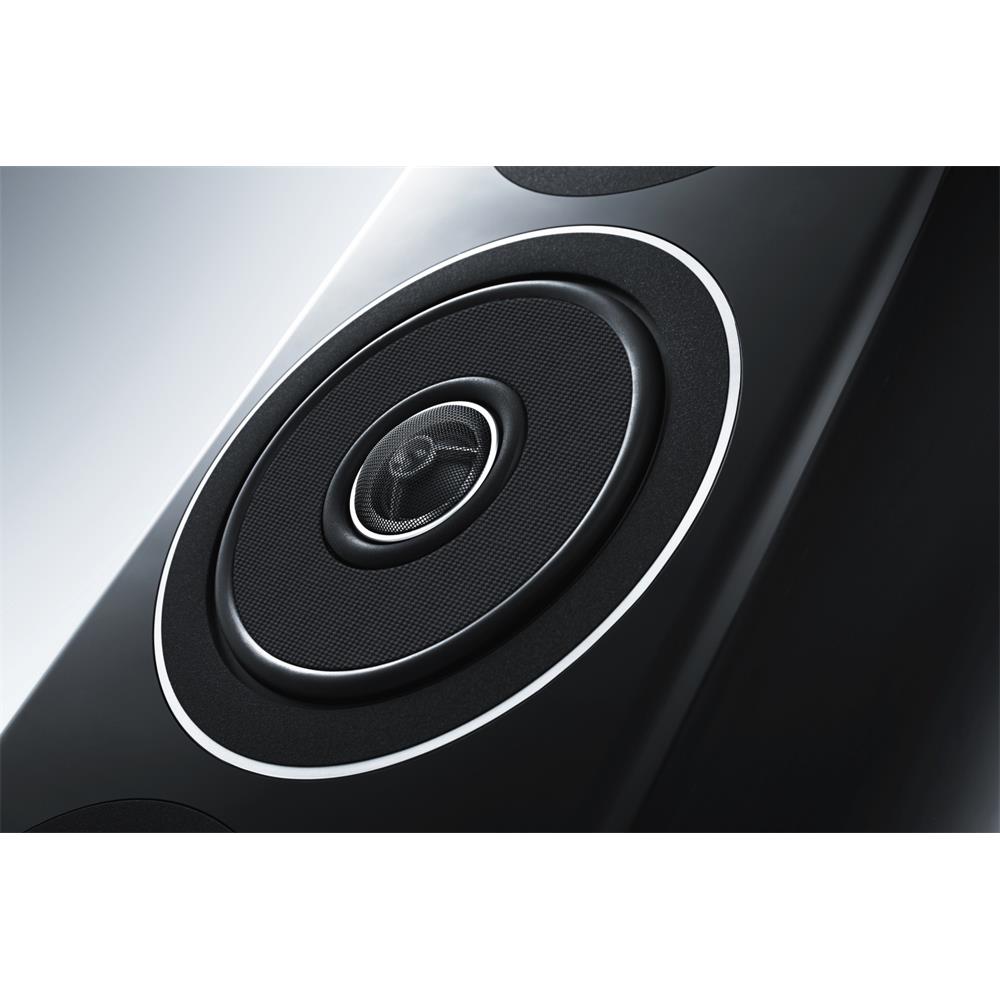

Phase Precision Driver (Flat Coaxial 2-Way Speaker Unit)
For faithful reproduction of mid-range and high-frequency sound, Technics has developed an all-new flat coaxial two-way drive. The flat mid-range diaphragm is of a sandwich construction, using lightweight, high-rigidity carbon cloth skins and aluminium honeycomb core.
It maintains a perfect pistonic motion over a frequency band extending beyond the crossover point with the tweeter, while eliminating the frequency distortions caused by the ‘cavity effect’ in conventional cone diaphragms. The magnetic circuit employs a large magnet, copper cap, copper shorting ring and short voice coil with high-density edgewise winding to achieve high drive power and low distortion, while the speaker chassis is die-cast aluminium, with a resonance-dispersing structure to eliminate even the smallest unwanted vibration.

Ultra Wide Range Reproduction
Thanks to a carbon graphite dome tweeter mounted at the centre of the flat mid-range drive unit, the SB-R1 is capable of reproducing frequencies all the way up to 100 kHz. And with bass extension down to 20 Hz, it’s ready to deliver the vast frequency spectrum offered by high-quality, high-resolution music sources.

High Rigidity Entasis Form Cabinet
A 50-mm-thick baffle used in the cabinet supports the speaker units rigidly and suppresses undesirable resonances, while side panels comprising eight layers of MDF give the cabinet a curved form, suppressing unwanted vibration and reducing internal and external diffraction and reflection.
An internal partition divides the cabinet into upper and lower sections, and eliminates low-order standing waves in the vertical direction. The choice of absorbent acoustic material and its position were optimised based on the frequency band of each drive-unit as well as the cabinet volume, thus further suppressing standing waves inside the cabinet, and even the rings round each drive unit are made of a material with high internal loss to eliminate unwanted emitting from anywhere other than the speaker sound diaphragm.
The glossy finish on the cabinet is created through a series of processes including repeated coating, sanding, and polishing, the high degree of craftsmanship complementing the speakers’ high-quality sound. The finish even suppresses fine vibrations generated on the cabinet surface, thus contributing to the accuracy of the sound.

Low Distortion 16-cm Long Stroke Woofer
Technics has developed a long-throw woofer capable of reproducing super-low frequencies with dramatically reduced distortion, giving powerful, dynamic and responsive bass. A push-pull edge (Symmetrical Surround Technology, SST) design cancels secondary harmonic distortion in the low-frequency range.

High Quality Network Circuit
The High-quality Network Circuit was created as a result of extensive designing and listening, in order to maximise the performance of each speaker unit and achieve a balanced sound. To prevent interference between the drive units and minimise the effect of vibration, separate network boards for woofer, mid-range and tweeter are optimally arranged inside the cabinet.

Discover your own personal sound experience

In our living room studio "Klangvilla" in Leipzig we feature more TECHNICS products which are at all times ready for presentation. You will have the option to be explained and demonstrated also other high-quality high-end devices by our sales manager who will be available for you. We can also recommend the appropriate wiring and other high quality Hi-Fi accessories. Simply arrange a consultation or demonstration with our sales manager for home hi-fi.

Technische Daten / Technical Specifications

TECHNICS - SB-R1
Emotive Acoustic Technologie /	Emotive Acoustic Technology:	• Lautsprechersystem mit Punktschallquelle / Point-Sound-Source Speaker System • Ultra Wide Range Reproduction • Phase Precision Treiber (Koaxiales 2-Wege-Flachlautsprechersystem) / Phase Precision Driver (Coaxial Flat 2-way Speaker Unit) • Verzerrungsarme 16cm Woofer Langhub-Chassis / Low Distortion 16-cm Long Stroke Woofer • Hochwertige Frequenzweiche / High-quality Network Circuit • Starrer und verwindungsfreier Korpus mit sich verjüngender Bauform / High Rigidity Entasis Form Cabinet
Definitives Technics Design /	Technics Definitive Design:	• Hochwertiges, schwarzes Klavierlack-Finish / Black High Gloss Finish • Korpus mit sich verjüngender Bauform / Round Form Cabinet • Magnetisch fixiertes Lautsprechergitter / Magnet Fixed Fabric Grille
Typ /	Type:	3,5-Wege 6-fach Bassreflex Lautsprecher (inklusive 2-Wege Koaxial für Mitten und Hochtöner) / 3,5-Way 6-speaker bass reflex (including coaxial 2-Way for mid-range and tweeter)
Lautsprecher /	Speaker unit:	• Tieftöner/Woofer: 4x 16 cm Konus Typ • Mitten/Mid-Range: 1x Coaxial, 16 cm Flat type • Hochtöner/Tweeter: 1x 2.5 cm Dome type
Crossover Frequenz /	Crossover frequency:	300Hz, 3kHz
Frequenzbereich /	Frequency range:	20Hz - 100kHz (-16dB), 28Hz - 90kHz (-10dB)
Schalldruckpegel /	Sound pressure level:	88dB /2.83V (m)
Impedanz /	Impedance:	4 Ohm
Eingangsleistung (IEC) /	Input power (IEC):	150 W (Rated), 300 W (Max)
Abmessungen (B x H x T) /	Dimensions (W x H x D):	40,8 cm x 126,0 cm x 52,2 cm (inklusive Abdeckung und Anschlüssen / including net and terminals)
Gewicht /	Weight:	ca. 72 kg Stück/piece

Scope of Delivery

• 2 x TECHNICS - SB-R1 - 3,5-Way bass reflex floorstanding loudspeakers - Reference speaker system in high-gloss black
• 2 x short cables
• 8 x spikes
• 8 x spike washers
• 1 x cleaning cloth
• 1 x operating instructions
