DALI

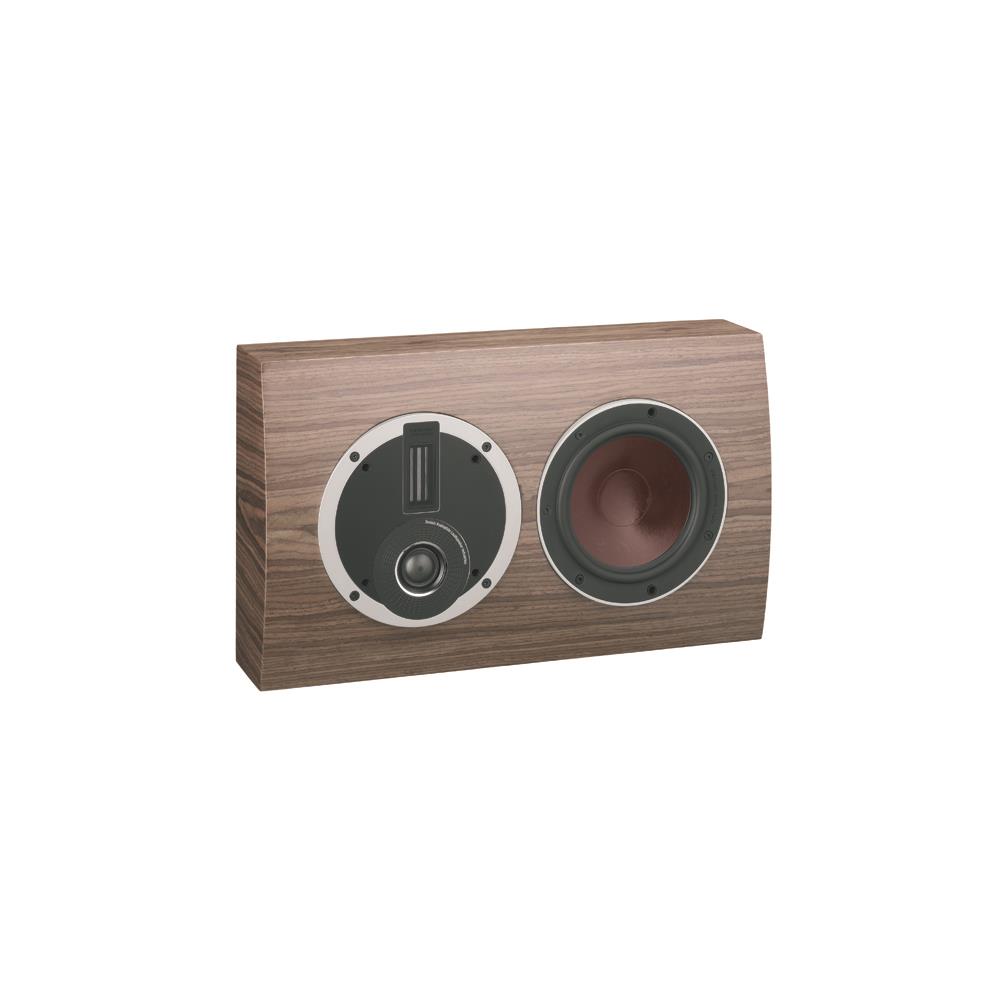

DALI Rubicon LCR On-Wall-Speaker (20-150 W / walnut veneer / 1 piece)

Article number: 11006100
RRP: 1,499.00 2 1,349.10

You save: 10 %

VAT included Plus shipping costs  (from 0.00 )
3% discount: 1,308.63 For payment by cash in advance (bank transfer) or pickup on the spot
The desired item is backordered.
Storage alert

Highlights

    qualitative centerspeaker and on-wall loudspeaker for residential use in noble walnut veneer
    beautiful design and excellent workmanship
    also available in rosso veneer, high gloss black and high gloss white
    optimum performances - strong power handling
    enormously capable and tremendously versatile
    we are specialized dealer for DALI products - your authorized dealer in Leipzig


Product Description

The wall-mounted Rubicon LCR is simply born to stand out in both sound performance and design with the hybrid tweeter module and the wood fibre low-loss driver. The compact Rubicon LCR delivers a wide dynamic range, a coherent sound with lots of details all together with a bass response that’s unrivalled in its class. The rotatable hybrid tweeter module makes it possible to use the Rubicon LCR as either the left or right channel, or as a centre speaker. The 6½ inch woofer uses the ingeniously designed bass port to reach maximum bass depth. With the Rubicon LCR, we promise you a sound performance that will dazzle you and leave you with goose bumps.

Low-loss technology
The cone used in the Rubicon series draws upon the heritage from the Epicon technologies, and has a light, rigid and randomly uneven structure. This lower the complexity of the central part of the motor, ensures even piston like movements, reduces the possibility of surface resonance greatly and creates an extremely low distortion within the Rubicon series. The soft low-loss rubber surround is designed and bespoke specifically for the Rubicon series, and all of the components are situated in an aluminum chassis designed for maximum airflow around the cone and magnet system.

Tweeters
In the Rubicon series, DALI makes use of both the soft dome tweeter working alone, and the hybrid tweeter configuration an amazing rendering of the high frequencies. The voice coil used in the Rubicon series is designed to be very light and agile in order to achieve a broader bandwidth. This lighter voice coil is placed inside a powerful ferrite magnet that keeps a tight control of its movements. The ribbon tweeter is the master of wide dispersion and combining it with the soft dome, the tweeter module starts working as low as 2.5 KHz. This extreme bandwidth combined with the ultra wide dispersion is an important part of the DALI sound philosophy.

Attention: Rubicon LCR is also available in rosso veneer, high gloss black and high gloss white.



Test reports (selection)

HEIMKINO in September 2014:
"This set shines with its homogeneous character and is definitely the first choice when it comes to realizing a reference-class home theater with a visually and sonically perfect On-Wall solution."

VIDEO in August 2014:
"The living room friendly blockbusters are among the best that could want a home theater fan. They impress both with music and also film sound."

STEREO in July 2014:
"A space-saving speaker, through his swivel tweeter is versatile. Very linear frequency response, almost on studio level."



Discover your own personal sound experience

In our living room studio "Klangvilla" in Leipzig we feature more DALI products which are at all times ready for presentation. You will have the option to be explained and demonstrated also other high-quality high-end devices by our sales manager who will be available for you. We can also recommend the appropriate wiring and other high quality Hi-Fi accessories. Simply arrange a consultation or demonstration with our sales manager for home hi-fi.



Technische Daten / Technical Data

Spezifikationen / Specifications - Rubicon LCR - Centerspeaker and on-wall loudspeaker in walnut veneer
Produktserie / Product series: Rubicon
Bauart / Speaker type: Center; Front; On-Wall; Rear; Surround
Frequenzbereich (+/- 3 dB) / Frequency range (+/- 3 dB): 59 - 34,000 Hz
Empfindlichkeit (2,83V/1m) / Sensivity (2,83V/1m): 89,0 dB
Nennimpedanz / Nominal impedance: 4 Ohm
Maximaler Schalldruckpegel / Maximum SPL 109 dB
Empfohlene Verstärkerleistung / Recommended amplifier power: 20 - 150 W
Übergangsfrequenzen / Crossover frequency: 3,100 Hz / 14,000 Hz
Frequenzweichenprinzip / Crossover principle: 2 + ½-Wege / 2 + ½-Way
Hochtöner / Tweeter (high frequency driver): 1 x 17 x 45 mm Rollband / ribbon; 1 x 29 mm Gewebekalotte / soft textile dome
Tieftöner / Woofer (low frequency driver): 1 x 6½" Holzfaserkonus / wood fibre cone
Gehäusetyp / Enclosure type: Bassreflex / bass reflex
Bassreflex-Abstimmfrequenz / Bass reflex tuning frequency: 49.0 Hz
Anschluss Eingang / Connection input: Single wire
Magnetische Abschirmung / Magnetic shielding: Keine / none
Empfohlene Aufstellung / Recommended placement: Oberhalb/unterhalb des Fernsehbildschirms / above/below TV screen; On-Wall / on-wall)
Empfohlener Wandabstand / Recommended distance from wall: 0 - 30 cm
Maximale Abmessungen mit Basis und Abdeckung (H x B x T) / Maximum dimensions with base and cover(H x W x D): 468 mm x 278 mm x 146 mm
Gewicht pro Lautsprecher / Weight per speaker: 8,0 kg
Ausführung / Finish: Walnuss Furnier / walnut veneer




Scope of Delivery

  • 1 x DALI - Rubicon LCR - Centerspeaker and on-wall loudspeaker in walnut veneer
  • 8 x rubber bumpers (adhesive feet)
  • 1 x micro fibre cloth
  • 2 x wall bracket (each in a loudspeaker)
  • 1 x operating instruction / user manual
