Cocktail Audio

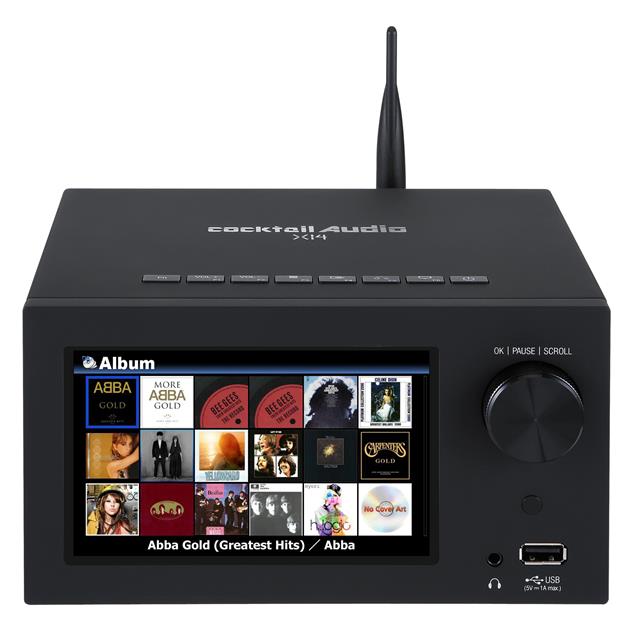

Cocktail Audio X14 - All-in-One HD music server (black / audio server / streamer / revolutionary Hi-Res hifi system)

Article number: 11007997
681.37
VAT included Plus shipping costs  (from 0.00 )
3% discount: 660.93 For payment by cash in advance (bank transfer) or pickup on the spot
Little in stock

Highlights

    high-quality All-in-One HD music server in black finish
    very good value for money
    equipped with high-performance dual core ARM Cortex A9 processor running at 1.0 Ghz
    192 Khz Stereo CS4350 DAC chip with integrated PLL built-in
    combined with high-performance 30 watts per channel of Class D power amplifier (total 60 Watts)
    5 inch TFT LCD(800 x 480 pixel) screen built-in on the front for intuitive user interface
    Bluetooth receiver (profile: A2DP, AVRCP / supported codec: SBC(subband codec), aptX, AAC, MP3)
    giga fast ethernet(10/100/1000Mbps) built-in
    supports up to 8 TB (tera bytes) storage like 3.5"/2.5" hard disk or SSD
    supports various file formats like MQA, DSD(64/128), DXD(24Bit/352.8Khz) including 24Bit/192Khz WAV/FLAC and other audio file formats
    optional function: CD ripping with professional CD metadata and album cover art provided by Gracenote (external USb optical drive required)
    loading of vinyl and cassette tape collections to the X14 in hi-res sample rate 192 Khz
    playing music files from mobile devices via the X14 through its Bluetooth receiver
    versatile network functions such as UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc
    major music streaming services (TIDAL, TIDAL MQA, Deezer, Qobuz, Napster) and internet radio (Airable) available (soon also Amazon Music and Highresaudio streaming available)
    customized remote control App, NOVATRON MusicX for iOS and Android
    provides customized WebInterface(WebUI) for remote control and MusicDB management by PC
    'Roon ready', which is the famous music player for music lovers
    we are specialized dealer for Cocktail Audio products - your authorized dealer in Leipzig


Product description

All-in One HiFi system
Just add speakers, you will get a great hifi system with versatile functions and various features immediately.

High Performance Digital Amplifier built-in
The X14 has D-class power amplifier built-in with rated output total 60Watts @1Khz, 8 ohm, 1% THD

Great Sound Quality created by X14
A perfect combination of circuit design technology and qualified major components like DAC, Amp, etc will deliver wonderful sound to music lovers.

High Performance System Resources and custom-designed software
Based on Dual Core ARM Cortex A9 processor running at 1.0GHz and custom-designed software, the X14 got everything ready for delivering powerful operation performance, plenty of features and functions created by advanced software developed by in-house R&D team.

Support various Hi-Res audio formats
MQA, DSD64, DSD128, DXD(24Bit/352.8KHz), HD FLAC(24Bit/192KHz), HD WAV(24Bit/192KHz), CAF, APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, Ogg Vorbis, PCM, M3U, PLS, etc

Bluetooth built-in with aptX supported
The X14 offers Bluetooth receiver which allows you to play music files in your mobile devices via the X14. It supports A2DP and AVRCP profiles and SBC(Subband codec), aptX, AAC and MP3 codec.

Optional function, CD-Ripping with Gracenote CD metadata and album cover art
If you want to rip your CDs collections to X14 MusicDB, you need to buy an external USB Optical Disk Drive, and plug it into X14 USB host port. You can load all your CDs onto the MusicDB of X14 in FLAC, ALAC, WAV or MP3 file format easily

Music Database function
The X14 has a well-organized Music Database built-in, which offers very nice and convenient functions like SEARCH, Display by text or cover art, SORT, etc.

Recording with 192Khz hi-res sampling rate
The X14 offers a recording function for internet radio, and Analog In. You can make your own difgital music collection with 192Khz hires sampling rate and beautiful sound

Auto/Manual Editing for the recorded files
Very smart auto/manual editing function for the recorded files is available at the X14. You can easily edit the recorded files and make a nice digital music file collection.

5 inch TFT LCD Screen for Intuitive GUI
5 inch big screen will let you control the X14 easily with intuitive GUI and display cover art and all information for a playing song.

Enough Storage for Music Server
3.5"/2.5" SATA hard disk and Solid State Drive(SSD) are accepted to the X14, which supports up to 8TB capacity. You can install a storage easily thanks to a customized storage drive bay

Versatile Networking and Remote Control with a Customized App
Connect the X14 to your network for streaming music to and from other devices, listen to cloud based music services and control remotely using mobile devices with our customized remote control app, NOVATRON MusicX or WebInterface

Control remotely by mobile devices with Customized Remote Control App, MusicX, web interface
Connect the X14 to your network for streaming music to and from other devices, listen to cloud based music services and control remotely using mobile devices with our customized remote control app, NOVATRON MusicX or WebInterface.

Support various network protocols like UPnP Server/Client/Renderer, Samba Server/Client
You can stream songs to and from other compatible devices in the same network.

AirPlay and Spotify Connect
You can play songs from iOS devices and music from Spotify on the X14 wirelessly.

Major Music Streaming Services integrated
You can access tens of thousands of internet radio stations and online music services like TIDAL, Deezer, Qobuz, Napster and Spotify Connect.

Control X14 by Roon
As X14 supports 'Roon Ready', you can control X14 with Roon, which is a great music player for music lovers.



Discover your own personal sound experience

In our living room studio "Klangvilla" in Leipzig we feature more Cocktail Audio products which are at all times ready for presentation. You will have the option to be explained and demonstrated also other high-quality high-end devices by our sales manager who will be available for you. We can also recommend the appropriate wiring and other high quality hi-fi accessories. Please just simply arrange a date for demonstration or consulting service with our home hi-fi sales manager.



Technical Data

Specifications - Cocktail Audio - X14
Hersteller Manufacturer Cocktail Audio
Modell Model X14
Maße (BxHxT) Measurements (WxHxD) 180 mm x 100 mm x 150 mm
Farbe Colour schwarz / black
Prozessor & Speicher Host CPU & Memory CPU: Dual Core ARM Cortex A9 mit 1.0 GHz
RAM: DDR-1066 1GB
ROM: EMMC 8GB
Optionales CD Laufwerk optional CD player externes USB-CD-Laufwerk benötigt für CD Ripping und Wiedergabe
external USB optical disk drive required for CD ripping ans playing
Bildschrim Display 5 Zoll TFT LCD (800x480 Pixel)
Bedienung Interface Knöpfe und Drehregler am Gerät/Key & Knob
IR Fernbedienung/ IR Remote Control
App für iOS und Android/Customized Remote App for iOS & Android devices
Webinterface für alle Browser/Web Interface (WUI)
Verstärker Amp Class D, 2x 30W @1KHz, 8 Ohm, 1%THD
Class D, 2x 60W @1KHz, 4 Ohm, 1%THD
Digitaler Ausgang
(Lautstärke regelbar)
Digital Out
(Volume controllable)
Toslink x 1 Sample Rate bis zu/up to 24bit/192Khz
Coaxial SPDIF 75 Ohm RCA, Sample Rate bis zu/up to 24bit/192Khz
Analoger Ausgang
(Lautstärke regelbar)
Analog Out (Volume controllable)
Vorverstärker (RCA)/Pre-Out(RCA) Dynamische Bandbreite/Dynamic Range : 109dB (Max 2Vrms, Stereo)
Unbalanced(PRE-OUT) Dynamic Range : 130dB (Max 2Vrms, Stereo) THD+N: 0.0004%
Kopfhörer/Headphone 3,5mm Klinke/jack (Front), 2x150mW@1Khz,16 ohm, 0.1% THD
Analoger Eingang Analog Input
Line InL & R RCA at the rear, default 2Vrms(controllable 1~4Vrms)
Bluetooth Bluetooth Bluetooth Receiver mit/with A2DP, AVRCP profiles / support AAC and aptX
Weitere Anschlüsse Connectivity 3 x USB Host ports(USB3.0/5V1A x 2, USB2.0/5V1A x 1)
Netzwerk/Networküber Kabel/wired GigaFast Ethernet (10/100/1000Mbps) LAN
kabellos/wireless) 801.11b/g/n WiFi USB dongle (Optional)
Interner Speicher Internal Storage 2.5” SATA HDD, SSD and 3.5” SATA HDD up to 8TB
unterstütze Dateisysteme/supported file system: Linux, NTFS, FAT32
OSD Sprachen OSD Languages English, Deutsch, French, Spanish, Italian, Polish, Czech, Dutch, Traditional Chinese, Russian, Danish, Korean, weitere auf Anfrage/to be added on request
Unterstütze Netzwerkprotokolle Supported Network Protocols UPnP (DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc
Internetdienste
Internet Services
Internet Radio airable
Online Music Service STIDAL, TIDAL MQA, Deezer, Qobuz, Napster, Spotify Connect * Abo erforderlich/Subscription required
Stromversorgung Power
Eingang/input 100 – 240Vac, 50/60Hz (free voltage)
Ausgang/output24V/3.5A


Scope of Delivery

  • 1 x Cocktail Audio - X14 - All-in-One HD music server in black
