You save: 12 %
![]() |
All-in-One HD database-supported music server / network streamer / CD storage (ripper) | |
![]() |
digitize your old records and audio cassettes with up to 192kHz / 24-bit sampling rate | |
![]() |
in black with 2TB 3.5" hard drive - very good value for money | |
![]() |
beautiful design and excellent workmanship | |
![]() |
optimum performances - strong power handling | |
![]() |
equipped with a 2x1 Ghz Arm Cortex A9 (processor) | |
![]() |
only external digital-to-analogue converter | |
![]() |
isolated power source circuit design for digital and analogue parts | |
![]() |
high speed optical disk drive for quick ripping | |
![]() |
7-inch full colour screen for intuitive graphical user interface | |
![]() |
HDMI output to output the menus on an external monitor | |
![]() |
FM and Dab+ radio receiver | |
![]() |
phono input (Moving Magnet) for turntables | |
![]() |
toroidal power supply | |
![]() |
internet radio and online music services like Simfy (depends on country) | |
![]() |
recording capability with up to 192kHz/24-bit | |
![]() |
max. capacity storage installation support for 2.5” or 3.5” SATA hard disk drives or SSD | |
![]() |
versatile network solution for 24bit/192Khz high-resolution streaming playback and file management | |
![]() |
customized Web Interface and free UPnP apps for remote controlling | |
![]() |
high quality metal housing with 12 mm thick, milled aluminum front | |
![]() |
various software functionalities | |
![]() |
and much more… | |
![]() |
power supply = AC 220V - 240V, 50/60Hz (for Europe) | |
![]() |
we are specialized dealer for Cocktail Audio products - your authorized dealer in Leipzig |

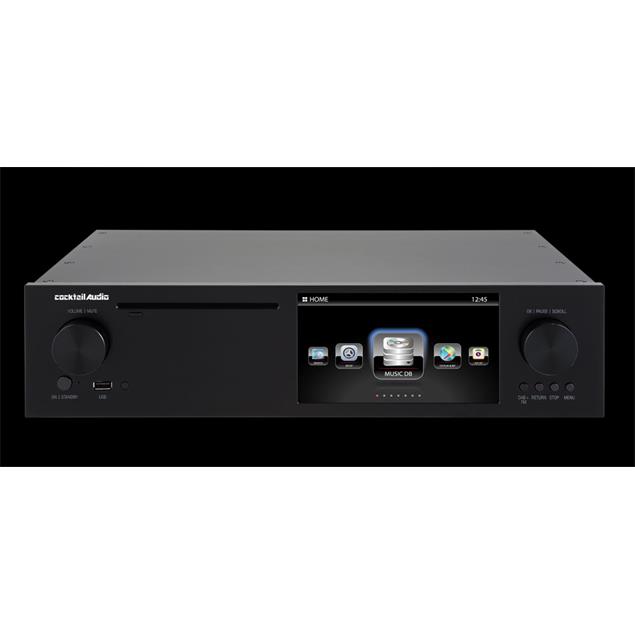

Equipped with a 2x1 Ghz Arm Cortex A9 processor, a powerful digital amplifier, a fast optical drive for fast ripping of CDs, a 7.8 cm (7 inch) colour screen for intuitive operation, an FM radio tuner, virtually unlimited storage space A 3.5-inch HDD bay (also suitable for 2.5-inch and SSD), a fast gigabit network interface, a high-quality metal housing in hi-fi format with 12 mm aluminum bezel and a variety of software features, the Cocktail Audio X50 is the perfect music server and affordable player for audiophile music lovers, but of course, a great radio receiver and network streamer for home users.
In our living room studio "Klangvilla" in Leipzig we feature more Cocktail Audio products which are at all times ready for presentation. You will have the option to be explained and demonstrated also other high-quality high-end devices by our sales manager who will be available for you. We can also recommend the appropriate wiring and other high quality Hi-Fi accessories. Please just simply arrange a date for demonstration or consulting service with our home Hi-Fi sales manager by e-mail or by telephone.
Specifications - Cocktail Audio - X50 with 2TB 3.5" hard drive | ||
Prozessor / | Processor: | Dual Core ARM Cortex A9 1.0GHz |
Arbeitsspeicher / | RAM: | DDR-1066 1GByte |
Firmwarespeicher / | Firmware memory: | 8Gbit |
Festplatte / | Hard drive: | 3,5" mit 2TB / 3.5" with 2TB |
Typ CD-Player / | Type CD player: | Fronteinschub / front insertion |
Unterstützte Datenträger / | Supported media: | CD, CD-DA, CD-R, CD-RW, DVD-R/RW |
Display / | Display: | 7 Zoll (17,8 cm) TFT-LCD Bildschirm (1024 x 600 Pixel) HDMI für externen Monitor/TV / 7 inch (17.8 cm) TFT LCD screen (1024 x 600 pixels) HDMI for external monitor / TV |
Bedienung / | Appliance: | Fernbedienung, PC, iOS & Android-Geräte mit benutzerdefinierter Weboberfläche oder kostenlosen UPnP Tablet- & Smartphone-Apps / Remote control, PC, iOS & Android devices with user-defined web interface or free UPnP tablet & smartphone apps |
Audioformate / | Audio formats: | DSD64 (2,8224Mhz), DSD128 (5,6448Mhz), DXD(24Bit/352KHz), bis zu / up to 32Bit/385KHz PCM Signal, Inclusive HD FLAC (24Bit/192Khz), HD Wav (24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, Ogg Vorbis, PCM, M3U, PLS, etc. - keine kopiergeschützten Formate / no copy-protected formats |
Tuner digital / | Tuner digital: | DAB/DAB+ Tuner eingebaut / included |

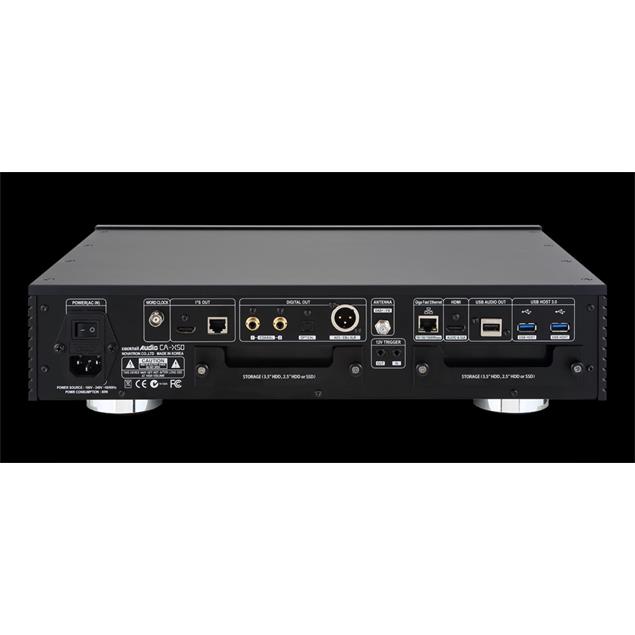

Koaxial x2 / | Coaxial x2: | S/PDIF 75 Ohm RCA, Abtastrate / sampling rate: bis zu / up to 24bit/192KHz |
Toslink x1 / | Toslink x1: | S/PDIF, Abtastrate / sampling rate: bis zu / up to 24bit/192KHz |
AES/EBU XLR x1 / | AES/EBU XLR x1: | 110 Ohm, Abtastrate / sampling rate: bis zu / up to 24bit/192KHz |
I²S Out inkl. Word-Clock x1 / | I²S out incl. Word-Clock x1: | RJ-45 & HDMI - Abtastrate / sampling rate: bis zu / up to 24bit/192KH |
USB Audio x1 / | USB audio x1: | USB Audio Class 2.0 (Unterstützung bis zu / support up to DSD256) PCM 384 KHz |
HDMI Out x1 / | HDMI out x1: | HDMI Audio Ausgang (geteilt mit HDMI Video Ausgang) / HDMI audio output (shared with HDMI video output) |
USB Host Ports / | USB host ports : | 1x USB 2.0 vorne; 1x USB 3.0 hinten / 1x USB 2.0 front; 1x USB 3.0 back |
FM Radio / | FM radio: | Frequenzbereich / frequency range (FM 87,5 - 108 Mhz)
FM Antennen Impedance: 75 Ohm - RDS wird unterstützt / RDS supported |
Unterstützte Speicherkapazität / | Supported storage: | 2,5" und 3,5" SATA bis zu 6TB pro Schacht / 2.5" and 3.5" SATA drives up to 6TB per bay |

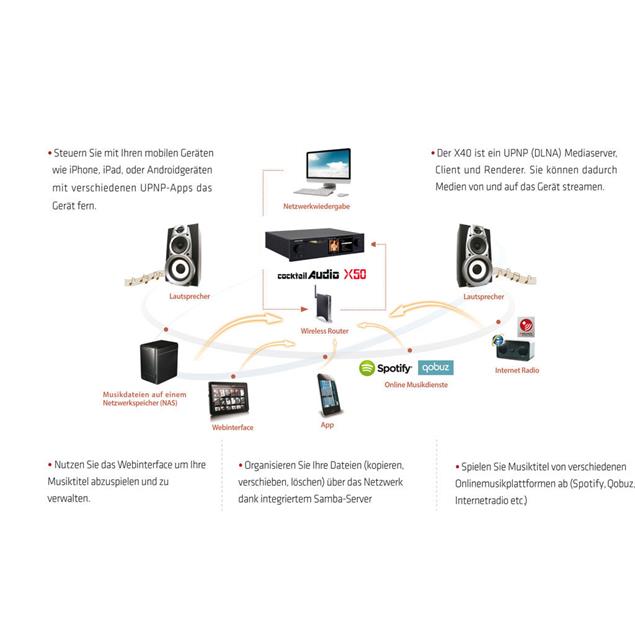

Netzwerkprotokolle / | Network protocols: | PnP (DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc |
Netzwerk / | Network: | Fast Ethernet (10/100/1000Mbps) RJ-45 Ethernet |
Internet-Dienste / | Internet services: | Internet Radio: Airable (Powered by TuneIn)
Streaming: TIDAL, Deezer, Qobuz, Spotify Connect, HighresAudio |
Unterstützte Sprachen / | Supported languages: | Englisch, Deutsch, Französisch, Spanisch, Italienisch, Polnisch, Tschechisch, Niederländisch, Chinesisch, Russisch, Dänisch, Koreanisch, etc (weitere Sprachen auf Anfrage möglich) / English, German, French, Spanish, Italian, Polish, Czech, Dutch, Chinese, Russian, Danish, Korean, etc (other languages on request) |
12V Trigger / | 12V Trigger | Out: Max. 200mA, 12V - IN: Max. 12V |
Spannungsversorgung / | Power supply: | AC 220V - 240V, 50/60Hz (für Europa / for Europe) |
Zertifikate / | Certificates: | CE, FCC, EMI, etc | Stromverbrauch / | Power consumption: | Standby 0,3 Watt
typisch / typically ca. 10-15 Watt |
Maße (BxHxT) / | Dimensions (WxHxD): | 441 mm x 111 mm x 330 mm |
