Highlights
 |
|
Metal case shields the electronics from vibrational and electromagnetic interference |
 |
|
Outstanding sound quality |
 |
|
Audiophile Performance |
 |
|
Dual mono configuration |
 |
|
Precise RIAA equalisation |
 |
|
4 adjustable gain levels |
Features
 |
|
Brushed aluminum in silver |
 |
|
Compact, space-saving design allows installation close to record player |
 |
|
Audiophile-grade amplification modules |
 |
|
Audiophile-grade polypropylene WIMA capacitors |
 |
|
Switchable Subsonic filter –12dB @ 20Hz |
 |
|
Switchable input impedance/capacitance |
Article Description
This new phono preamplifier offers unrivalled performance and unique flexibilty, which never before was available at this price! Sonic quality of Phono Box S is extremely impressive, a big improvement and a perfect upgrade for most analogue hifi system. With a wide range of setting parameters, it can meet the needs of almost any phono cartridge on the market. A switchable subsonic filter prevents your amplifier and speakers of ultra low rumble below 20Hz. Carefully selected amplifier modules and audiophile-grade polypropylene capacitors make it possible to enjoy your valuable vinyl collection like never before! The class-leading music reproduction of Phono Box S gives pure dynamics, full transparency, analogue warmth, bass texture, detail resolution and purity of all audible frequencies.
Technische Daten / Technical Data

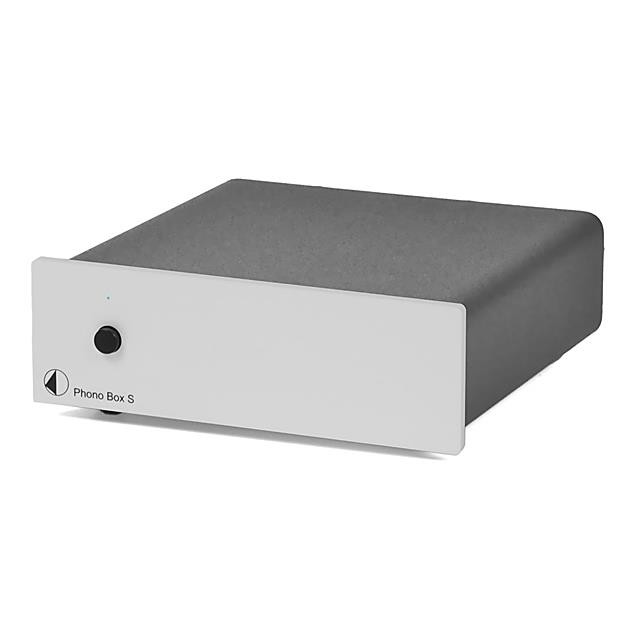

Pro-Ject Phono Box S - phono preamplifier (MM/MC) - silver |
Eingangsimpedanz / |
input impedance: |
10/100/1000 Ohm(MC)/ 47kOhm (MM) |
Eingangskapazität / |
input capacity: |
100/200/320/420pF |
Verstärkungsfaktoren / |
gain switch: |
40/43/60/63dB |
Rauschabstand / |
signal-to-noise ratio: |
MM: 86dB (94dB – IEC -A) / MC: 68dB (75dB - IEC -A) |
Klirrfaktor / |
THD: |
0,01% MM / 0,05% MC |
RIAA Abweichung / |
RIAA deviance: |
max. 0,4dB / 20Hz - 20kHz |
In/Out Anschlüsse / |
in/out sockets: |
1 Paar RCA Buchsen / 1 pair RCA connectors |
Leistungsaufnahme / |
power consumption: |
18V/85mA |
Überdimensioniertes Netzteil / |
oversized power supply: |
18Volt DC/500mA |
Frontfarbe / |
face plate colour: |
silber / silver |
Maße B x H x T (T mit Buchsen) / |
dimensions W x H x D (D with sockets): |
103 x 36 x 104 mm (115 mm) |
Gewicht / |
weight: |
570 g ohne Netzteil / 570 g without power supply |
|
Scope of Delivery
- 1 x Phono Box S - phono preamplifier (MM/MC) in silver
