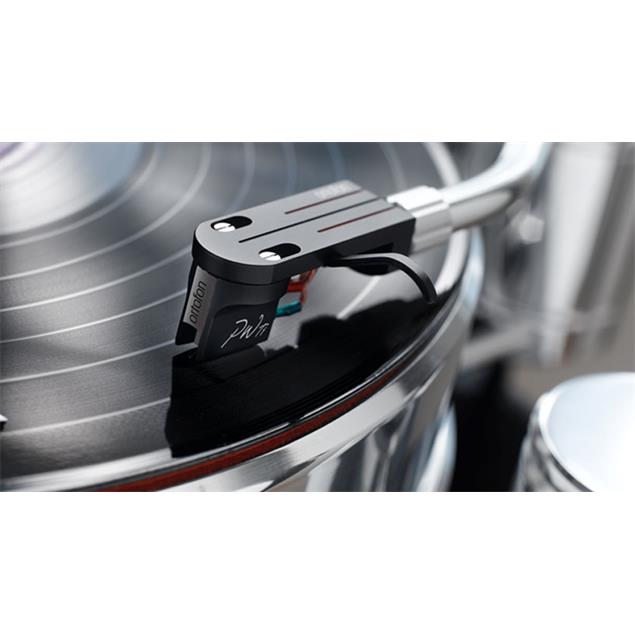

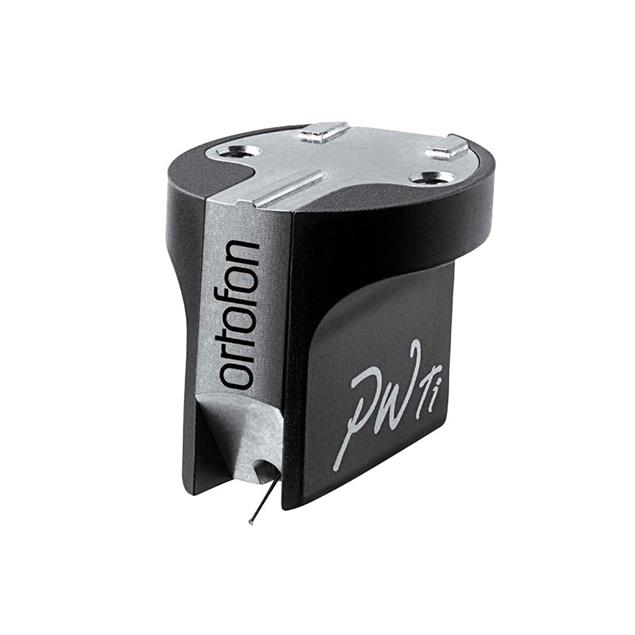

Ortofon MC Windfeld Ti Heritage - MC cartridge for turntables (black / Low-Output Moving-Coil / for moderate tonearm types)

Highlights

		modern MC system
		lively, pleasant and dynamic sound
		outstanding resolution
		nice bass
		easy installation
		quick adjustment
		for moderate tonearm types
		we are specialized dealer for Ortofon products - your authorized dealer in Leipzig

Product Description

In continuation of the Ortofon design tradition and the new paradigm in engineering and manufacturing, we are proud to introduce the MC Windfeld Ti, a new moving coil phono cartridge in the absolute high-end class.
At the heart of the MC Windfeld Ti lies a revolutionary customized Selective Laser Melting manufacturing technology pioneered by Ortofon for manufacturing of the legendary MC A90 in 2008. The use of Titanium in the MC Windfeld Ti has provided a further improvement to the overall rigidity of the structure and the cartridge weight.
Our extensive knowledge of vibration properties, characteristics in different shapes and materials, competences in magnetism, mechanical design and new technologies has been applied for optimization of the MC Windfeld model. The new MC Windfeld Ti has gone to the next level by reducing unwanted vibrations and increasing the dynamic capability of the cartridge.
Those who choose to adopt the MC Windfeld Ti will experience the lifelike, dynamic and open sound, with exceedingly clear midrange. The MC Windfeld Ti remains extremely musical while paying close attention to micro dynamic details, with its delicate, but also analytical nature.

Technical Data

Ortofon - MC Windfeld Ti Heritage
Produktname /	Product name:	MC Windfeld Ti Heritage
Hersteller /	Manufacturer:	Ortofon
Tonabnehmer-Typ /	Pickup type:	MC (Low-Output Moving-Coil)
Ausgangsspannung /	Output voltage:	0,3 mV*
Verstärkeranschluss /	Amplifier connection:	Phono MC
Kanalabweichung bei 1 kHz /	Channel deviation at 1 kHz:	<0,2 dB
Übersprechdämpfung bei 1 kHz /	Crosstalk at 1 kHz:	>28 dB
Übersprechdämpfung bei 15 kHz /	Crosstalk at 15 kHz:	>22 dB
Frequenzbereich /	Frequency range:	10-80.000 Hz
Frequenzgang /	Frequency response:	20-20.000 Hz +/-1,0 dB
Abtastfähigkeit bei 315 Hz /	Tracking ability at 315 Hz:	100µm**
Nadelnachgiebigkeit /	Needle compliance:	16 µm/mN
empfohlener Tonarm-Typ /	Recommended tonearm type:	mittelschwer / moderate
Abtastdiamant /	Stylus type:	Ortofon Replicant 100, nackt / naked
Verrundung /	Rounding:	r/R 5/100 µm
Auflagekraftbereich /	Tracking force range:	23-28 mN (2,3 - 2,8 g)
empfohlene Auflagekraft /	Recommended tracking force:	26 mN (2,6 g)
Abtastwinkel /	Scanning angle:	23 Grad
Gleichstromwiderstand /	DC resistance:	4 Ohm
Empfohlener Abschlusswiderstand: /	Recommended load impedance:	>10 Ohm
Besonderheiten /	Special features:	Wicklung aus vergoldetem 6N-Reinkupfer/ winding of gold plated 6N-pure copper Boron-Nadelträger / boron needle carrier Feldstabilisierungs-Element Diamant spezialpoliert / field stabilization element diamond specially polished Headshell-Kabel aus Sauerstofffreiem 7N-Reinkupfer / h eadshell cable made of oxygen-free 7N pure copper (Ortofon LW-7N)
Gehäusematerial /	Housing material:	Edelstahl, Aluminium / stainless steel, aluminum
Gewicht /	Weight:	30 g

Note

• *at 1000 Hz, 5cm/sec.
• **at recommended tracking force

Scope of Delivery

• 1 x Ortofon - MC Windfeld Ti Heritage - MC cartridge for turntables
• 1 x mounting kit
• 1 x manual
