Ortofon

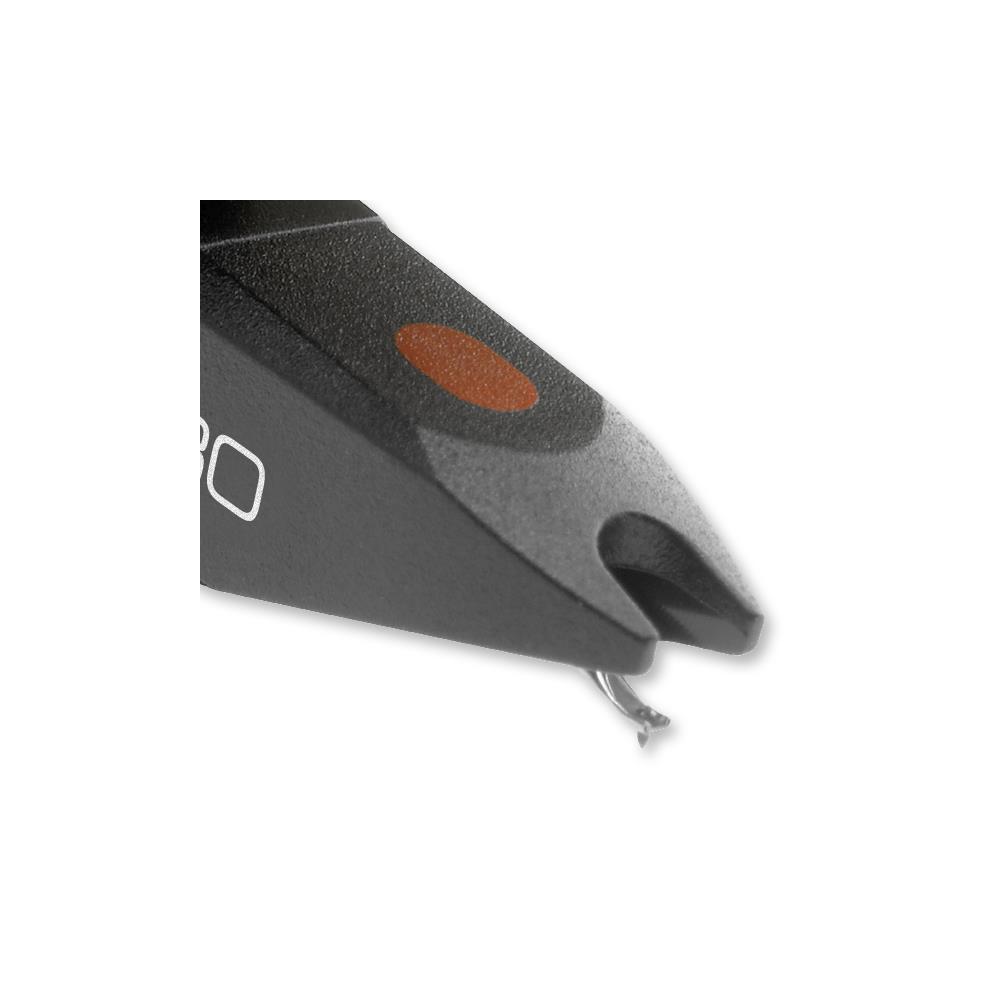

Ortofon Super OM 30 - MM cartridge for turntables (black / Moving Magnet / for light tonearm)
Article number: 11005954
259.90 €
3% discount: 252.10 €
For payment by cash in advance (bank transfer) or pickup on the spot
Sold out
Highlights
 |
very good spatial resolution and dynamic | |
|
clear sound | |
|
rich bass | |
|
needle barrel made of black, high-strength plastic | |
|
for numerous new record player in the moderate price category | |
|
exceptionally good MM system | |
|
for light tonearm types |
Product Description
This exceptional MM system implements a rich bass, a clear sound and is also characterized by an extreme low distortion. This should inspire both Pop friends as well as jazz and classical music fans alike. In addition, the system provides a very nice spatial resolution and dynamic.
With its OM-series Ortofon managed to create a reference value for MM cartridges. All systems of the OM-series can be identified by the same characteristic needle barrel made of black, high-strength plastic. This lightweight design is ideal for light to medium weight tonearms. The OM-series systems are therefore very good standard systems for light to medium weight tonearms and thus are suitable for many new turntables in a moderate price category.
The scope of delivery includes mounting screws, a system weight of 2.5 grams or or an additional weight of 5 grams (removable).
You will get only genuine goods from the German distribution! The mounting screws are enclosed with the delivery.
Spezifikationen / Specifications
| Super OM 30 | ||||
| Tonabnehmer-Typ / | Pickup type: | MM (Moving-Magnet) | ||
| Ausgangsspannung / | Output voltage: | 4 mV* | ||
| Verstärkeranschluss / | Amplifier connection: | Phono MM | ||
| Kanalabweichung bei 1 kHz / | Channel deviation at 1 kHz: | 1 dB | ||
| Übersprechdämpfung bei 1 kHz / | Crosstalk at 1 kHz: | 25 dB | ||
| Übersprechdämpfung bei 15 kHz / | Crosstalk at 15 kHz: | 15 dB | ||
| Frequenzbereich / | Frequency range: | 20-29.000 Hz | ||
| Frequenzgang / | Frequency response: | 20-20.000 Hz +2 dB / -1 dB | ||
| Abtastfähigkeit bei 315 Hz / | Tracking ability at 315 Hz: | 90 µm** | ||
| Nadelnachgiebigkeit / | Needle compliance: | 25 µm/mN | ||
| empfohlener Tonarm-Typ / | Recommended tonearm type: | sehr leicht, leicht und mittelschwer*** / very light, light and medium heavy*** | ||
| Abtastdiamant / | Stylus type: | fine line, nackt / fine line, naked | ||
| Verrundung / | Rounding: | r/R 8/40 µm | ||
| Auflagekraftbereich / | Tracking force range: | 10-15 mN (1,0-1,5 g) | ||
| empfohlene Auflagekraft / | Recommended tracking force: | 12,5 mN (1,25 g) | ||
| Abtastwinkel / | Scanning angle: | 20 Grad | ||
| Gleichstromwiderstand / | DC resistance: | 1 kOhm | ||
| Induktivität / | Inductance: | 580 mH | ||
| Empfohlener Abschlusswiderstand: / | Recommended load impedance: | 47 kOhm | ||
| Empfohlene Abschlusskapazität / | Recommended load capacity: | 200-500 pF | ||
| Gewicht / | Weight: | 2,5 g (5 g mit einliegendem Zusatzgewicht) / 2.5 g (5 g with inset additional weight) | ||
| Ersatz-Nadeleinschub / | Replacement needle insertion: | Stylus 30 | ||
| Besonderheiten / | Special Features: | ***ohne eingelegtes Zusatzgewicht für mittelschwere Tonarme geeignet / ***suited to you without the additional weight for medium weight tonearms | ||
 |
||||
Note
- *at 1000 Hz, 5cm/sec.
- **at recommended tracking force
Scope of Delivery
- 1 x MM cartridge
- 1 x mounting kit
- 1 x additional weight
- 1 x manual
