|high quality record player with built-in phono stage for residential use|
|beautiful design and excellent workmanship|
|attention - the Planar 1 Plus has won the first award: „Best Buy“ at "the ear"|
|the new RB110 has the newly developed Rega free bearing with extremely low friction (patent pending)|
|new antiscatter system - automatic adjustment without adjustment - easy to get started (plug and play: set-up in less than thirty seconds)|
|new 111 g "plug and play" balance weight|
|new ergonomic headshell for better handling, integrated arm clip|
|24V synchronous motor with new control board and aluminum drive wheel|
|the rpm and speed constants are improved again|
|new engine cover with integral cooling effect|
|reworked main bearing made of brass with improved fit and optimized coupling (patent pending)|
|newly developed plate with 23 mm material thickness and increased momentum|
|flywheel effect platter made of phenolic resin|
|equipment feet in new, improved and re-designed design for stable stability and reduced vibration|
|with Rega CARBON MM cartridge system|
|very good value for money|
|optimum performances - strong power handling|
|enormously capable and tremendously versatile|
|we are specialized dealer for REGA products - your authorized dealer in Leipzig|
|high quality cartridge system|
|principle MM (Moving Magnet)|
|conventional 2-point mounting|
|output voltage 2.5 mV at 1 kHz|
|perfectly suitable for RP1, Planar 1 and Planar 1 PLUS|
|Plug & Play|

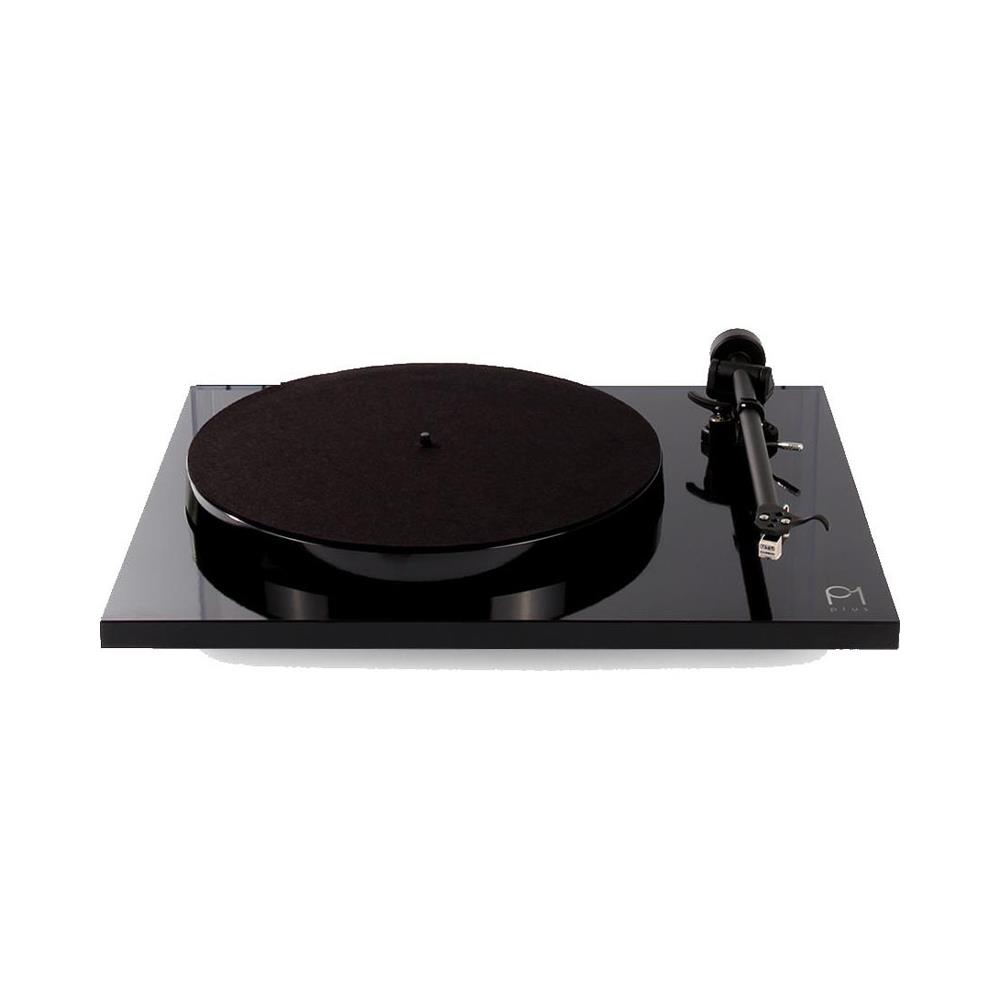

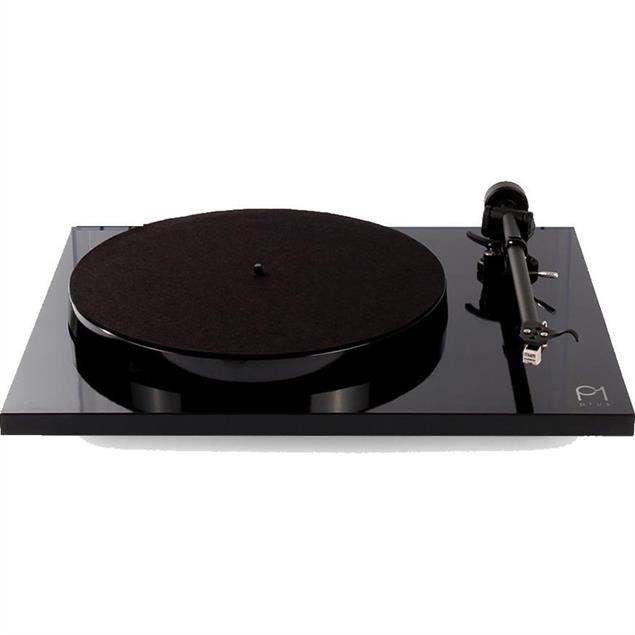

The Planar 1 PLUS by REGA is availabe in the brand new 2018 version.
When developing the Planar 1 PLUS everything was marked by the highest smoothness and maximum stability.
Rega asked themselves how to make the most successful turntable they have ever made sound better, be even easier to use and be more accessible to a wider audience? The answer was simple; their engineers added a custom designed, high quality, moving magnet phono stage based around the multi-award winning What Hi-Fi? 5 Star Fono Mini.
For the Planar 1 Plus, Rega wanted to optimize this circuit for ultimate performance so Rega removed the USB interface and used the money saved to improve what was already a stunning disc stage.
The new built-in stage offers the ability to connect the Planar 1 Plus directly to almost any system that has a standard line input via a standard phono to phono cable (supplied) or phono to 3.5 mm lead. Simply put, there is no need to purchase a standalone phono stage or use an amplifier with a built in stage. Your Planar 1 Plus will connect directly to any standard line level input (such as you would connect a CD player to).
There are obvious audio advantages to housing the phono stage directly beneath the tonearm. The carefully shielded tonearm wire is soldered directly to the stage which prevents any unwanted pick up via the usual external cable between the arm and stage.
The Planar 1 Plus benefits from all of the advantages of its sibling, the Planar 1, such as a low noise 24v motor, precision hub bearing assembly and hand made RB110 tonearm with a factory fitted Rega CARBON cartridge. Set-up remains possible in under 30 seconds making this the easiest to use, and most flexible Rega turntable to date.
The built-in phono stage is a high specification pre-amplifier. It is designed to amplify the signal from a moving magnet cartridge to a suitable level for all line level inputs of an appropriate system or audio amplifier. This allows simple connection to a wide variety of products using either the standard twin phono to phono lead (supplied) or phono to 3.5 mm plug (not supplied).
Brand new RB110 tonearm built with the new Rega designed, bespoke, zero play bearings with ultra-low friction performance (Patent Pending). New bias assembly and integrated arm clip. Includes automatic bias adjustment negating the need for the user to set bias, making this the most ‘Plug & Play’ turntable we have ever manufactured. New ergonomically, re-designed and stiffer headshell for improved usability and appearance.
Attention: Planar 1 PLUS is also available in high-gloss white.
Brand-new information: the Planar 1 Plus has won the first award: „Best Buy“ bei "the ear"!
Further note: only use a Rega PS1 350 mA power supply with the turntable.
Synchronous AC motor with a new motor PCB and aluminum pulley offering low noise and better speed stability.
Brand new Thermoset, gloss laminated plinth with vastly improved appearance and new ergonomically positioned on/off switch located on the underside.
New high-gloss coated support plate with further improved appearance and "strategically" mounted on the bottom main switch.
Re-designed brass main bearing, offering improved fit and removing stress on the bearing itself whilst minimising the transfer of potential energy (patent pending).
23 mm, high mass, phenolic platter with improved flywheel effect for improved speed stability.
New improved feet to increase stability and reduce vibration transfer.
New motor cover tray with integrated cooling.
In our living room studio "Klangvilla" in Leipzig we feature more REGA products which are at all times ready for presentation. You will have the option to be explained and demonstrated also other high-quality high-end devices by our sales manager who will be available for you. We can also recommend the appropriate wiring and other high quality Hi-Fi accessories. Please just simply arrange a date for demonstration or consulting service with our home Hi-Fi sales manager.
|Specifications - REGA - Planar 1 PLUS|
|Produktname /||Product name:||Planar 1 PLUS|
|Produkttyp /||Product type:||Plattenspieler / record player|
|Ausführung /||Finish:||Hochglanz schwarz / high-gloss black|
|Maße mit geschlossenem Deckel (B/T/H) /||Dimensions with lid closed (W/D/H):||44,8 cm / 36,5 cm / 11,5 cm|
|Gewicht /||Weight:||5,0 kg|
|Besonderheit /||Special feature:||inkl. Phonovorstufe / incl. phono stage|
|Maximale Leistungsaufnahme /||maximum power consumption:||50 Hz: 24 V AC 0.142 mA 3.4 W ; 60 Hz: 24 V AC 0.129 mA 3.1 W|
|Maximaler Ausgangspegel /||Maximum output level:||3,54 cm/s RMS 45 Grad/degrees CBS STR100 Band 6a und/and 7a: 370-410 mV|
|Ausgangsimpedanz /||Output impedance:||1 KiloOhm|
|Frequenzgang (nur Vorverstärker) /||Frequency response (pre-amplifier only):||14 Hz (-3 dB) bis/to 100 kHz (-0.6 dB)|
|RIAA Genauigkeit (nur Vorverstärker) /||RIAA accuracy (pre-amplifier only):||(100 Hz to 20 kHz) ± 0.4 dB typisch besser als / typically better than ± 0.25 dB|
|Vorverstärker Verstärkung /||Pre-amplifier gain:||40 dB|
|Eingangsbelastung des Vorverstärkers /||Pre-amplifier input loading:||47 kO in parallel zu/with 220 pF|
|Signal-Rausch-Verhältnis /||Signal to noise ratio:||-75 dB A-bewerteter Ref-Maximalausgang / A-weighted ref maximum output|
|Leistungsanforderungen /||Power requirements:||50 Hz 24 V AC 0.142 mA 3.4 W – 60 Hz 24 V AC 0.129 mA 3.1 W|
