Ortofon

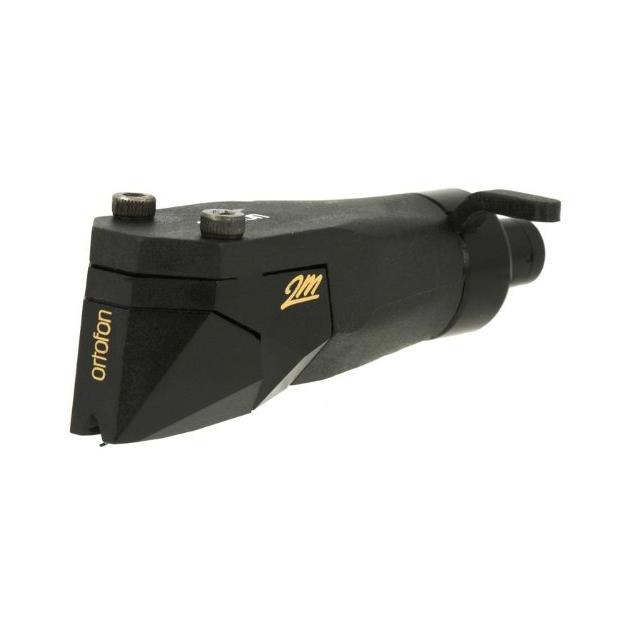

Ortofon 2M Black PnP MkII - MM cartridge for turntables (black / Moving Magnet / plug & play headshell with built-in cartridge / for moderate tonearm)
Article number: 11006818
585.00 €
3% discount: 567.45 €
For payment by cash in advance (bank transfer) or pickup on the spot
Sold out
Highlights
 |
easy installation | |
|
very universal | |
|
exemplary neutral sound | |
|
plays dynamic and captivating | |
|
good room picture | |
|
very good sampling process | |
|
for light and medium heavy tonearm types | |
|
convertible into another 2M system by replacing the needle carrier |
Product Description
Plug and Play headshell with integrated pickup is a elegant and practical solution for customers who wish direct and easy mounting and replacement on their tonearm.
The cartridge has a somehow neutral sound, but doesn't act sterile. It's fun listening to dynamic and thrilling sound at a surprisingly good room picture. The versatile cartridge system harmonizes with all known tonearms that are not built too light.
You will get only genuine goods from the German distribution!
Spezifikationen / Specifications
| Ortofon - 2M Black PnP MkII - plug and play headshell with built-in MM cartridge | ||||
| Tonabnehmer-Typ / | Pickup type: | MM (Moving-Magnet) | ||
| Ausgangsspannung / | Output voltage: | 5,5 mV* | ||
| Verstärkeranschluss / | Amplifier connection: | Phono MM | ||
| Kanalabweichung bei 1 kHz / | Channel deviation at 1 kHz: | 1 dB | ||
| Übersprechdämpfung bei 1 kHz / | Crosstalk at 1 kHz: | 26 dB | ||
| Übersprechdämpfung bei 15 kHz / | Crosstalk at 15 kHz: | 15 dB | ||
| Frequenzbereich / | Frequency range: | 20-31.000 Hz | ||
| Frequenzgang / | Frequency response: | 20-20.000 Hz +2/-0dB | ||
| Abtastfähigkeit bei 315 Hz / | Tracking ability at 315 Hz: | 80 µm** | ||
| Nadelnachgiebigkeit / | Needle compliance: | 22 µm/mN | ||
| Empfohlener Tonarm-Typ / | Recommended tonearm type: | leicht und mittelschwer | ||
| Abtastdiamant / | Stylus type: | Shibata & nackt / Shibata & naked | ||
| Verrundung / | Rounding: | r/R 6/50µm | ||
| Auflagekraftbereich / | Tracking force range: | 14-17 mN (1,4-1,7 g) | ||
| Empfohlene Auflagekraft / | Recommended tracking force: | 15 mN (1,5 g) | ||
| Abtastwinkel / | Scanning angle: | 20 Grad | ||
| Gleichstromwiderstand / | DC resistance: | 1,2 kOhm | ||
| Induktivität / | Inductance: | 630 mH | ||
| Empfohlener Abschlusswiderstand: / | Recommended load impedance: | 47 kOhm | ||
| Empfohlene Abschlusskapazität / | Recommended load capacity: | 150-300 pF | ||
| Gehäusematerial / | Housing material: | Lexan DMX | ||
| Gewicht des 2M / | Weight of 2M: | 7,2 g | ||
| Gewicht des 2M PnP / | Weight of 2M PnP: | 23 g | ||
| Ersatz-Nadeleinschub / | Replacement needle insertion: | Stylus 2M Black | ||
 |
||||
Note
- *at 1000 Hz, 5cm/sec.
- **at recommended tracking force
- Version 2M - mounting with screws from above.
- Version 2M Verso - mounting with grub screws from the bottom.
- Version 2M Verso comes with two additional screws for Thorens headshell.
- Version 2M PnP integrated headshell with SME connection.
Scope of Delivery
- 1 x Ortofon - 2M Black PnP MkII - MM cartridge
- 1 x mounting kit
- 1 x integrated headshell (plug and play headshell with built-in cartridge) with SME connection
- 1 x manual
