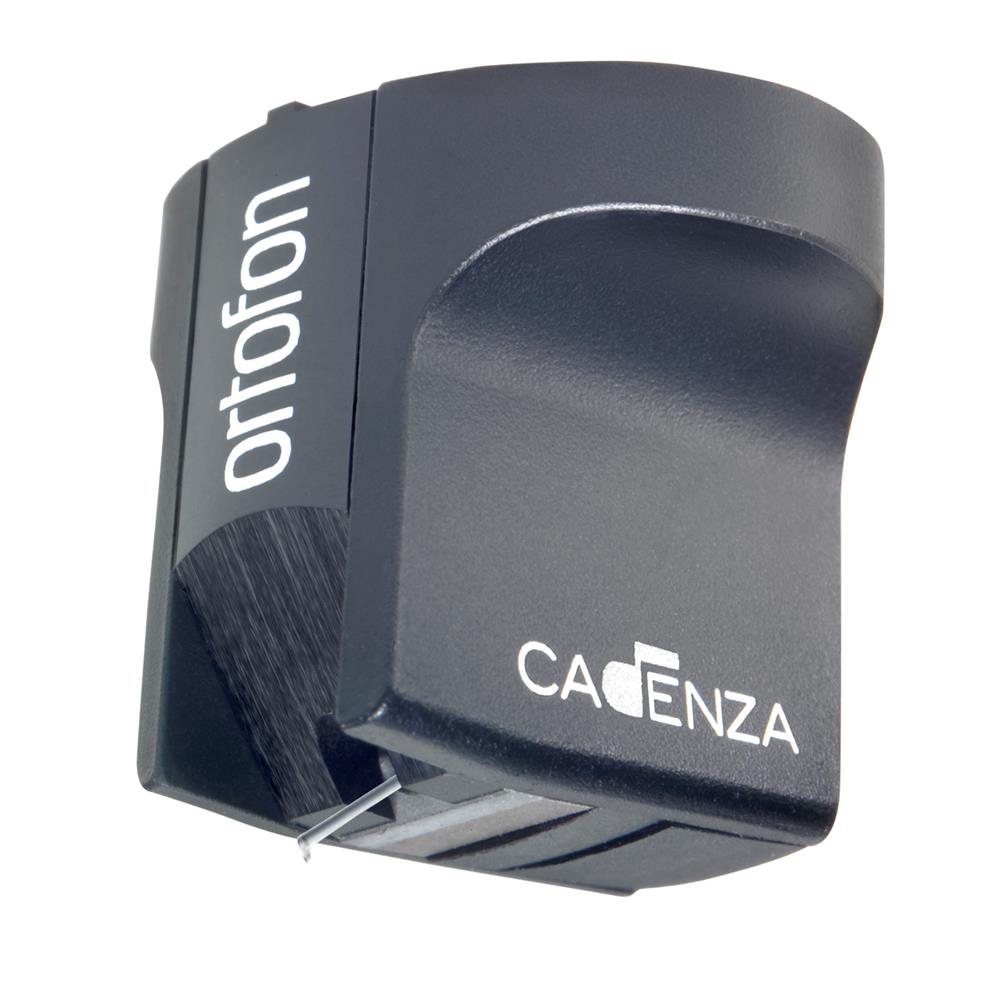

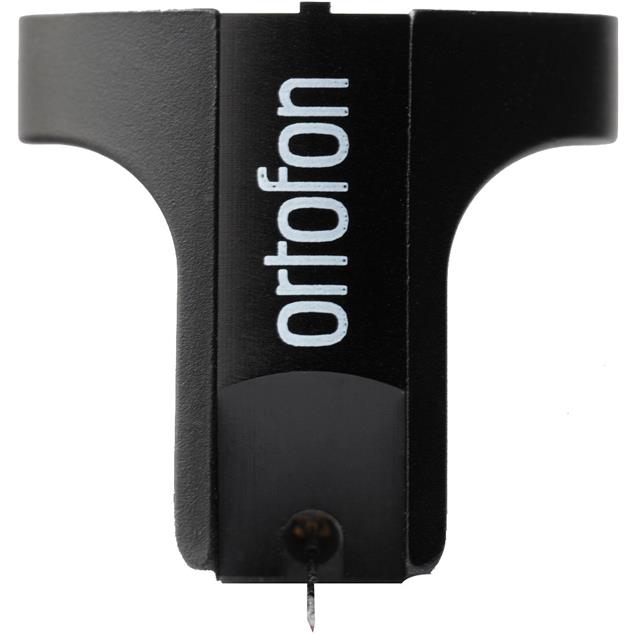

Ortofon MC Cadenza Black - MC cartridge for turntables (black / Low-Output Moving-Coil / for moderate tonearm)

Highlights

		modern MC system
		lively, pleasant and dynamic sound
		very good resolution
		nice bass
		easy installation
		easy adjustment
		for moderate tonearm types
		very good value for money
		we are specialized dealer for Ortofon products - your authorized dealer in Leipzig

Product Description

The compact pickup has a pleasant and dynamic sound with an enormous vibrancy. If you would like to enjoy listening to the analogue record sound in an excellent quality, this pickup is just right for you. The tone pickup system is in harmony with most of the known tonearms, which are not too light. The installation is straightforward, thanks to straight, right-angled edges and the tapped holes, thus facilitating adjustment.

Technical Data

Ortofon - MC Cadenza Black
Produktname /	Product name:	MC Cadenza Black
Hersteller /	Manufacturer:	Ortofon
Tonabnehmer-Typ /	Pickup type:	MC (Low-Output Moving-Coil)
Ausgangsspannung /	Output voltage:	0,33 mV*
Verstärkeranschluss /	Amplifier connection:	Phono MC
Kanalabweichung bei 1 kHz /	Channel deviation at 1 kHz:	<0,8 dB
Übersprechdämpfung bei 1 kHz /	Crosstalk at 1 kHz:	>27 dB
Übersprechdämpfung bei 15 kHz /	Crosstalk at 15 kHz:	>20 dB
Frequenzbereich /	Frequency range:	20-60.000 Hz
Frequenzgang /	Frequency response:	20-20.000 Hz +1,5/-0 dB
Abtastfähigkeit bei 315 Hz /	Tracking ability at 315 Hz:	>90µm**
Nadelnachgiebigkeit /	Needle compliance:	16 µm/mN
empfohlener Tonarm-Typ /	Recommended tonearm type:	mittelschwer / moderate
Abtastdiamant /	Stylus type:	Shibata, nackt / naked
Verrundung /	Rounding:	r/R 6/50 µm
Auflagekraftbereich /	Tracking force range:	22-25 mN (2,2 - 2,5 g)
empfohlene Auflagekraft /	Recommended tracking force:	23 mN (2,3 g)
Abtastwinkel /	Scanning angle:	20 Grad
Gleichstromwiderstand /	DC resistance:	5 Ohm
Empfohlener Abschlusswiderstand: /	Recommended load impedance:	50-200 Ohm
Besonderheiten /	Special features:	Wicklung aus Aucurum*** / winding of aucurum*** Boron-Nadelträger / boronic-needle carrier Headshell-Kabel aus Sauerstoff-freiem 6N-Reinkupfer / headshell cable made of oxygen-free 6N pure copper (Ortofon LW-6N)
Gehäusematerial /	Housing material:	Edelstahl, Aluminium / stainless steel, aluminum
Gewicht /	Weight:	10,7 g

Note

• *at 1000 Hz, 5cm/sec.
• **at recommended tracking force
• ***Aucurum. Wire of gold-plated, monocrystalline, oxygen-rich 6N pure copper (OFC 99.999999%)

Scope of Delivery

• 1 x Ortofon - MC Cadenza Black - MC cartridge for turntables
• 1 x mounting kit
• 1 x manual
