Ampire KV-DUCATO-5G - colour rear view camera (for FIAT Ducato, CITROEN Jumper, PEUGEOT Boxer / 170 degrees / mirrored / guide lines / colour)

Article number: 11007933
VAT included Plus shipping costs  (from 0.00 )
3% discount: 144.53 For payment by cash in advance (bank transfer) or pickup on the spot
Little in stock

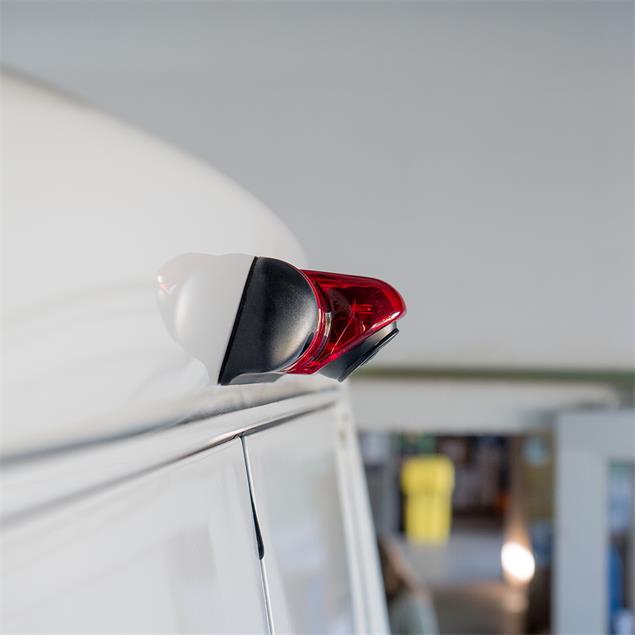

    high-quality rear view camera in colour
    suitable for FIAT Ducato, CITROEN Jumper and PEUGEOT Boxer
    is easily replaced with the factory brake light glass
    mounting screws accessible from the front
    image playback mirrored
    guiding lines: factory switched on (disconnectable by separating the cable loop)
    image sensor: "CMOS PC7070"
    resolution = 648x488 pixels
    viewing angle 170° diagonal
    viewing angle 120° horizontal
    vertical adjustability of the camera 20°
    picture format: NTSC
    580 lines of resolution
    IP68 waterproof
    integrated infrared lighting
    integrated microphone
    E-admission: E9-10R-05.1652
    CE-admission: EN 55022: 2010; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009; EN61000-3-3: 2008; EN 55024: 2010
    FCC admission: ANSI C63.4-2003
    easy installation
    very good price-performance ratio
    we are specialized dealer for car hi-fi products - your authorized reseller in Leipzig

Product Description

Vehicle-specific rear-view camera with microphone for the FIAT Ducato motorhomes or motorhomes based on the identical CITROEN jumper, PEUGEOT boxer to facelift. The KV-DUCATO-6G is simply exchanged for the factory-made brake light glass. Infrared lighting is integrated in the camera housing, which guarantees sufficient illumination even in the dark. In the second generation of this camera, an improved camera chip with a significantly higher resolution was used.

Installation Note
The camera is not suitable for continuous operation or monitoring. It must not be operated with ignition (K15), then the camera could be damaged by overheating.

Depending on the roof structure and the trailer hitch installed on the vehicle, you may not be able to see the trailer hitch on the monitor.

For motorhomes and other special bodies, the installation of the camera can be much more complicated or not possible.

Legal Note
Not allowed within the scope of StVZO and ECE. The commissioning of these articles is not permitted in the area of the StVZO. Illustrated and listed articles are for show purposes only and for motorsport!
An increase in vehicle dimensions, except for passenger cars and motorcycles, is subject to registration and must be assessed immediately by the Technical Testing Center or an officially recognized monitoring organization (DEKRA, GTÜ, KÜS, TÜV). Before installing or retrofitting, ask an officially recognized expert for motor vehicle traffic or a test engineer of a monitoring organization whether the operating permit is impaired or whether the change is even capable of being approved. The return of a used camera for credit is excluded.

Technical Data

Specifications - Ampire - KV-DUCATO-6G
Hersteller / Manufacturer: Ampire
Produkttyp / Product type: Rückfahrkamera / rear view camera
Produktname / Product name: KV-DUCATO-6G
Bildwiedergabe / Image display: werkseitig gespiegelt (normale Darstellung einstellbar) / factory mirrored (normal display adjustable)
Hilfslinien / Guides: werkseitig eingeschaltet (ausschaltbar) / factory switched on (can be switched off)
Betrachtungswinkel / Viewing angle: 170° diagonal
Betrachtungswinkel / Viewing angle: 120° horizontal
vertikale Einstellbarkeit / Vertical adjustability: 20°
Auslösung in Zeilen / Resolution in lines: 580
Auflösung in Pixel / Resolution in pixels: 648 x 488
Bildnorm / Image standard: NTSC
Mindestbeleuchtung / Photosensitivity: 0 Lux
Arbeitstemperatur / Working temperature: -30°C - +70°C
Betriebsspannung / Operating voltage: 9 - 16 Volt DC
Stromverbrauch / Power consumption: max. 150 mA
Farbe / Colour: schwarz / black
Kabellänge / Cable length: 10 m

Scope of Delivery

  • 1 x AMPIRE - KV-DUCATO-6G - rear view camera
  • 1 x connection cable (10 meters)
  • 1 x operating instructions
