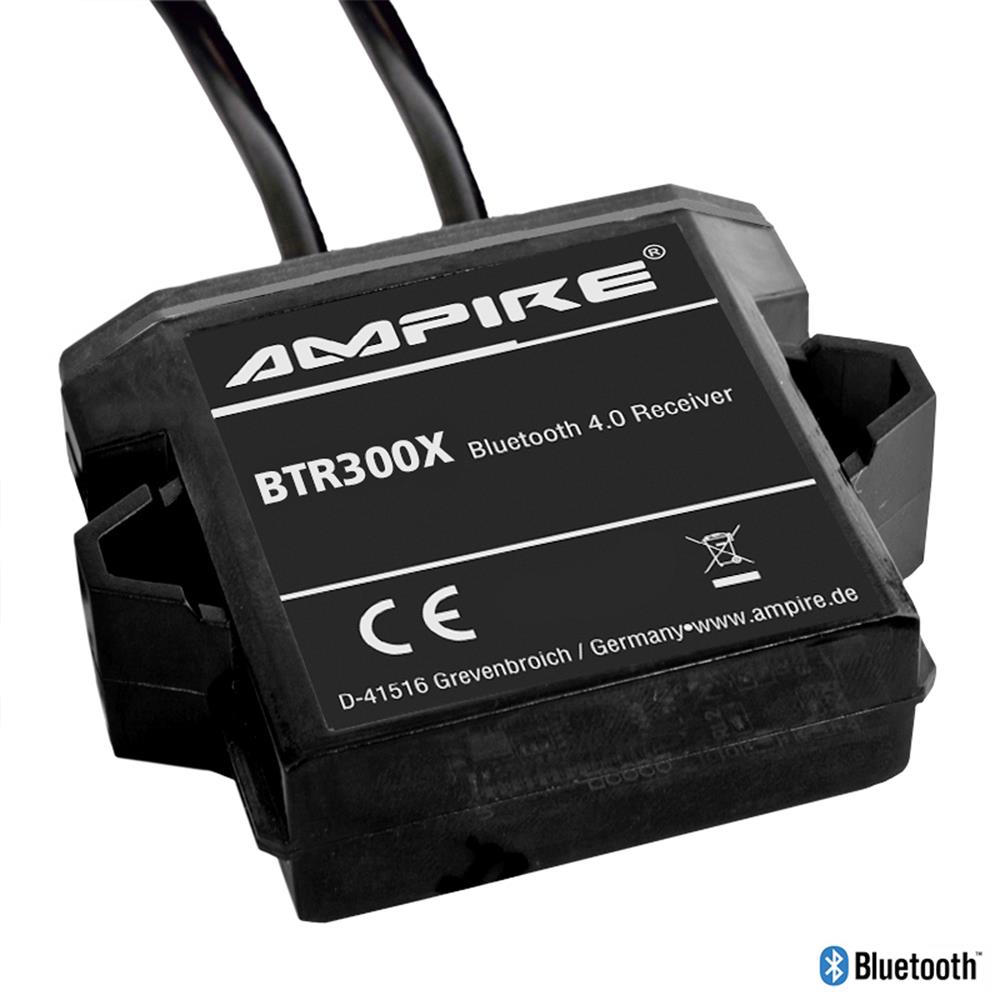

Ampire BTR300X - Bluetooth 4.0 receiver - Bluetooth adapter with auto-remote function and 3.5 mm jack connector (for music streaming / A2DP / AVRCP / HFP / HID audio streaming)

Highlights

		music transfer via Bluetooth 4.0 technology with excellent sound quality
		universal Bluetooth adapter for music streaming
		certified Bluetooth 4.0
		Plug&Play installation and Plug&Play function
		concealed mounting possible
		also for yacht/boat: waterproof & marine certified
		features: A2DP, AVRCP, HFP, HID audio streaming
		auto turn on and off with the ignition (ACC)
		auto reconnection with the last paired device
		auto pairing mode
		auto remote output with music playback
		QDL licensed Bluetooth 4.0 CRS I9chip
		SSID Name: BTR300X
		power supply voltage 5V DC through USB
		RCA output with 1.0V signal output
		operating range up to 30 feet (10 meter)
		very good value for money
		we are specialized dealer for Ampire products - your authorized dealer in Leipzig

Article Description

This universal A2DP Bluetooth receiver was developed for vehicles and boats that have a 3.5 mm jack and USB socket as an AUX input. All you have to do is plug in both plugs for installation. The power supply is solved via USB and music playback via the jack cable.

CONNECTIONS:

• USB Input (5 VDC) (30 cm)
• 3.5mm jack Output (30 cm)

BLUETOOTH LICENSE:

• Declaration ID D025151
• Referenced Qualified Design ID 56386
• Listing Date 08 December 2014

PAIRING:

• ensure that your streaming device has Bluetooth enabled
• turn the ignition (ACC) on
• the LED (6) starts blinking (pairing mode)
• select BTR300X in your devices Bluetooth setup menu
• when successfully connected, the LED on the BTR300X will stop blinking and remain lit. A single beep will be heard through the connected sound system

OPERATING:

• once connected, audio is controlled from the streaming device. This includes volume and media selection
• the BTR300X can be installed out of sight, as it has no user controls that needs to be accessed

ATTENTION:

• multiple devices can be paired to the BTR300X, but only one device can connect at one time
• the BTR300X will remember the last device which was connected to it and reconnect with it automatically. If that device is not active, then other paired devices can connect manually, or new devices can be paired
• when a connected device is out of range for more than one minute, the BTR300X will automatically disconnect it and returns to pairing mode [the LED (6) starts blinking]

Technical Data

Scope of Delivery

• 1 x AMPIRE - BTR300X - Bluetooth 4.0 receiver
