HiFonics

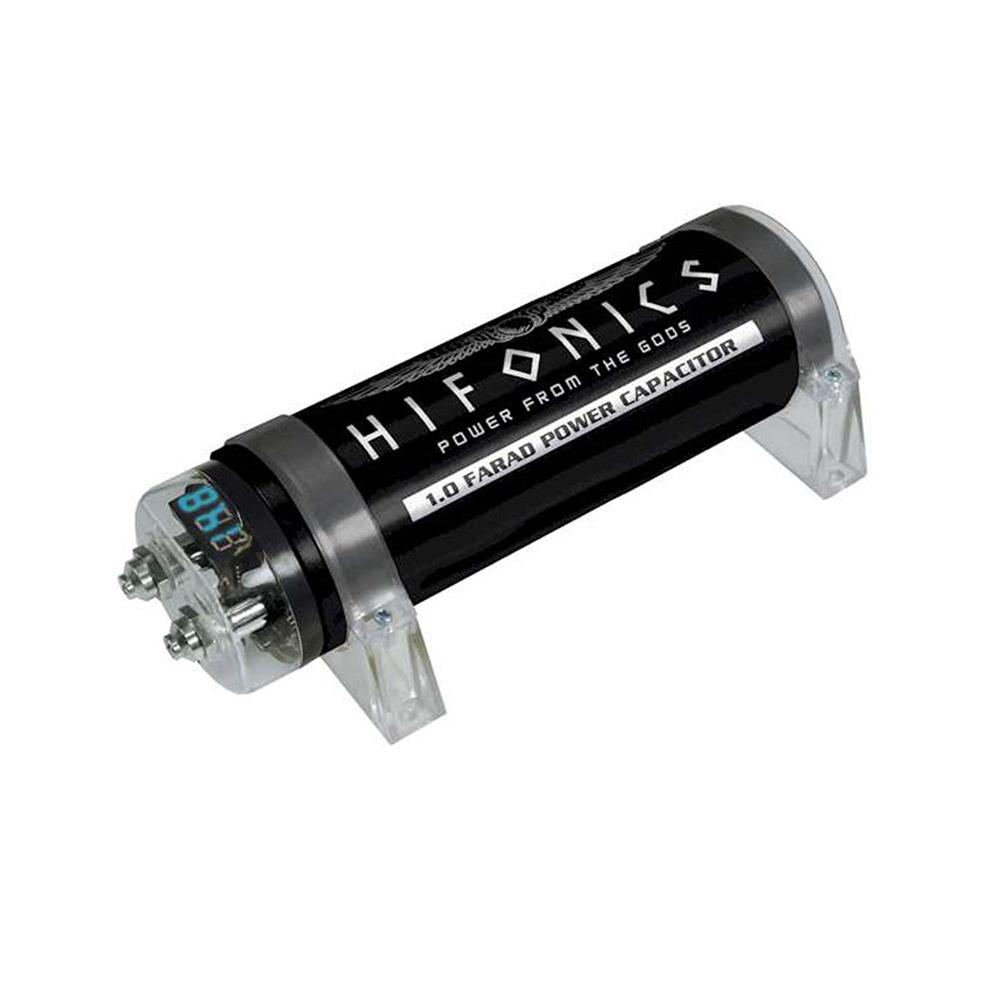

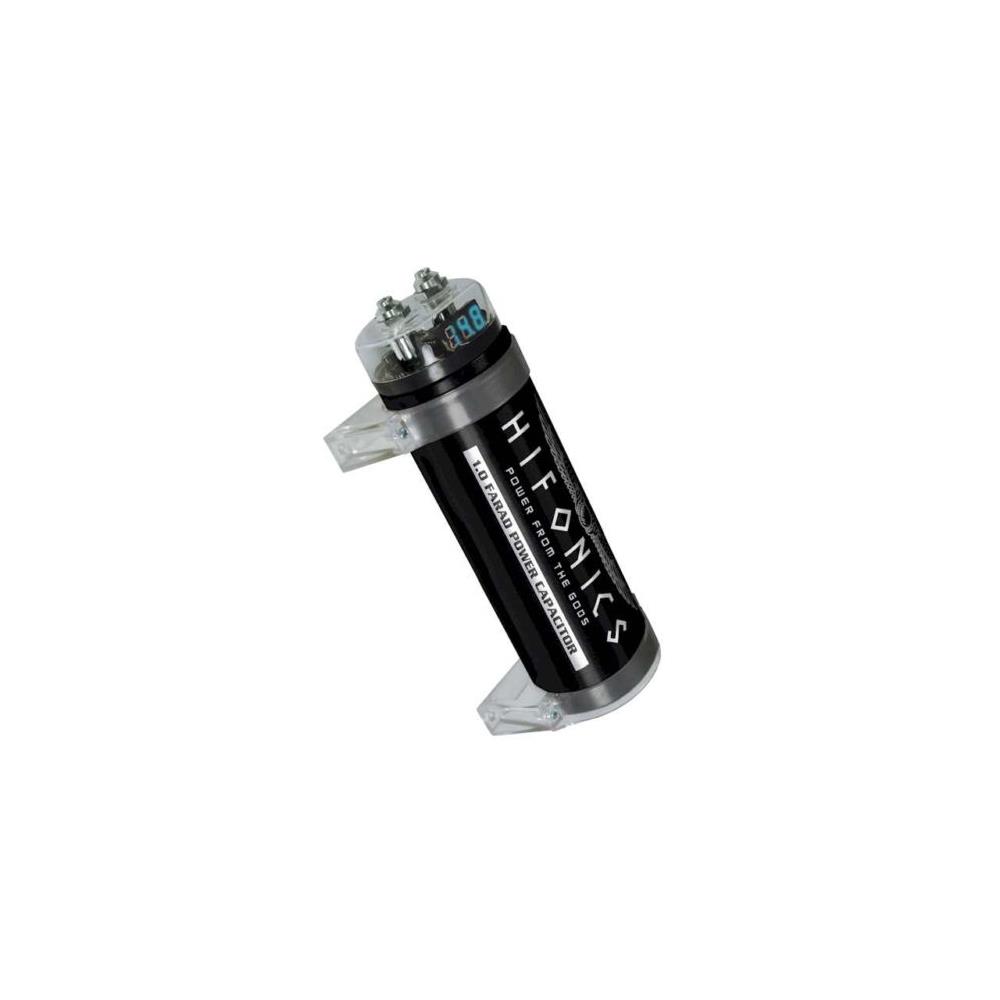

HiFonics HFC1000 - 1.0 farad power capacitor (1.0 F capacity / high-quality powercap)
Article number: 11005741
57.00 €
3% discount: 55.29 €
For payment by cash in advance (bank transfer) or pickup on the spot
Sold out
Highlights
 |
filter car AC voltage | |
|
improved power expansion of the amplifier | |
|
supports car audio amplifiers |
Product Description
The power capacitor is used in vehicles for stabilizing the 12 Volt supply and support for car audio amplifiers, if fast and temporary high currents are required. The power capacitor can compensate short-term power peaks on the on-board electrical system for low and powerful bass operations.
The use of the power capacitors results in a considerably improved power expansion of the amplifier.
Car audio amplifiers require very high current peaks for a proper operation. Conventional car battery are not designed to deliver additional power supply to car audio amplifiers.
Another feature of this power capacitor is to filter car AC voltage included by the amplifier power supply. This can cause audible interferences in the audio signal.
Technical Data
| Specifications - HFC1000 | ||||
| Kapazität / | Capacity: | 1.0 Farad +/- 10% | ||
| Dauer-Betriebsspannung / | Continuous Voltage: | 11 ~ 16V DC | ||
| Betriebstemperatur / | Operation temperature: | – 40 ~ 80° C | ||
| E.S.R. / | E.S.R.: | 0,0015 Ohm @ 120hz / 25° | ||
| Abmessungen ø / | Dimensions ø: | 75 mm x 280 (260) mm | ||
 |
||||
Scope of delivery
- 1 x Hifonics - HFC1000 - 1.0 farad power capacitor
- 2 x mounting brackets (top and bottom)
- 1 x charging-/discharging light bulb
- 1 x user manual
- hardware package
