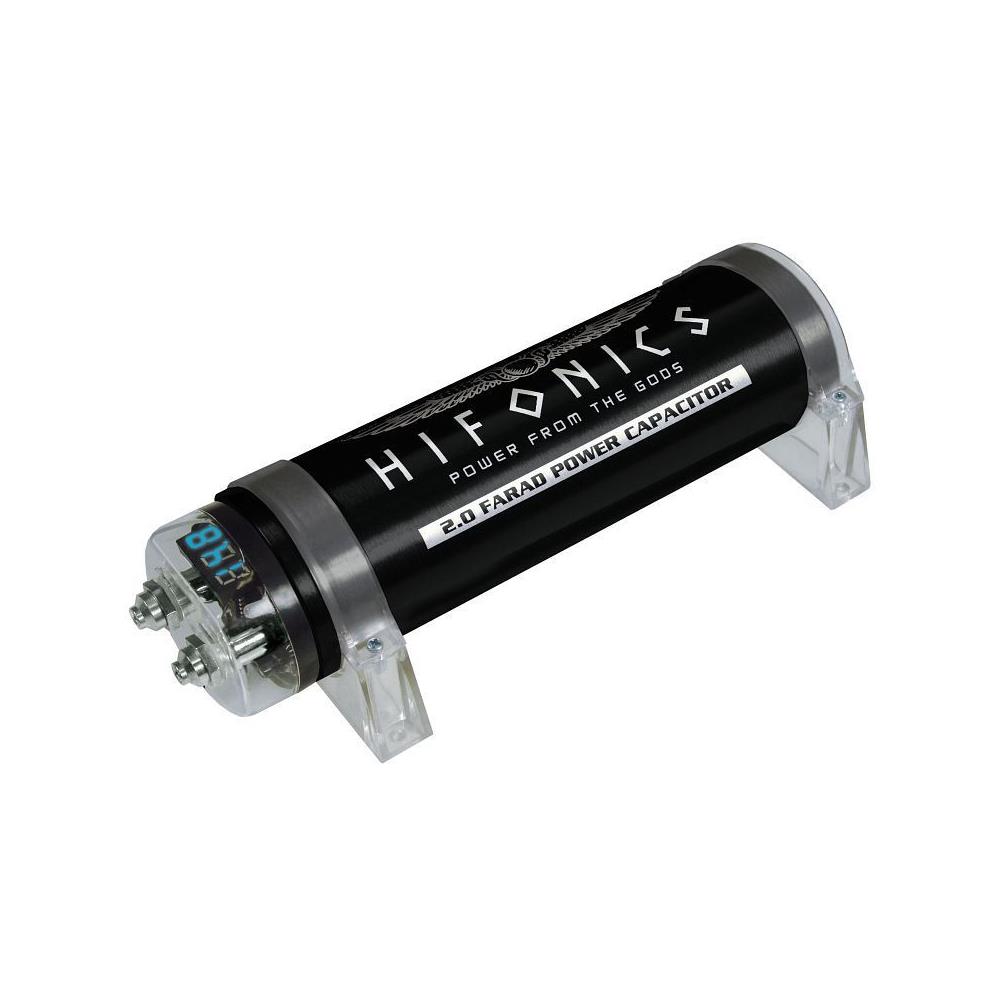

HiFonics HFC2000 - 2.0 farad power capacitor (2.0 F capacity / high-quality powercap)

Highlights

		filter car AC voltage
		improved power expansion of the amplifier
		supports car audio amplifiers

Product Description

The power capacitor is used in vehicles for stabilizing the 12 Volt supply and support for car audio amplifiers, if fast and temporary high currents are required. The power capacitor can compensate short-term power peaks on the on-board electrical system for low and powerful bass operations.
The use of the power capacitors results in a considerably improved power expansion of the amplifier.
Car audio amplifiers require very high current peaks for a proper operation. Conventional car battery are not designed to deliver additional power supply to car audio amplifiers.
Another feature of this power capacitor is to filter car AC voltage included by the amplifier power supply. This can cause audible interferences in the audio signal.

Technical Data

Specifications - HFC2000
Kapazität /	Capacity:	2.0 Farad +/- 10%
Dauer-Betriebsspannung /	Continuous Voltage:	11 ~ 16V DC
Betriebstemperatur /	Operation temperature:	– 40 ~ 80° C
E.S.R. /	E.S.R.:	0,0015 Ohm @ 120hz / 25°
Abmessungen ø /	Dimensions ø:	75 mm x 320 (305) mm

Scope of delivery

• 1 x Hifonics - HFC2000 - 2.0 farad power capacitor
• 2 x mounting brackets (top and bottom)
• 1 x charging-/discharging light bulb
• 1 x user manual
• hardware package
